Part Numbering System دیتاشیت

Part Numbering System

مشخصات دیتاشیت

نام دیتاشیت Part Numbering System
حجم فایل 107.748 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت Part Numbering System

دانلود دیتاشیت

سایر مستندات

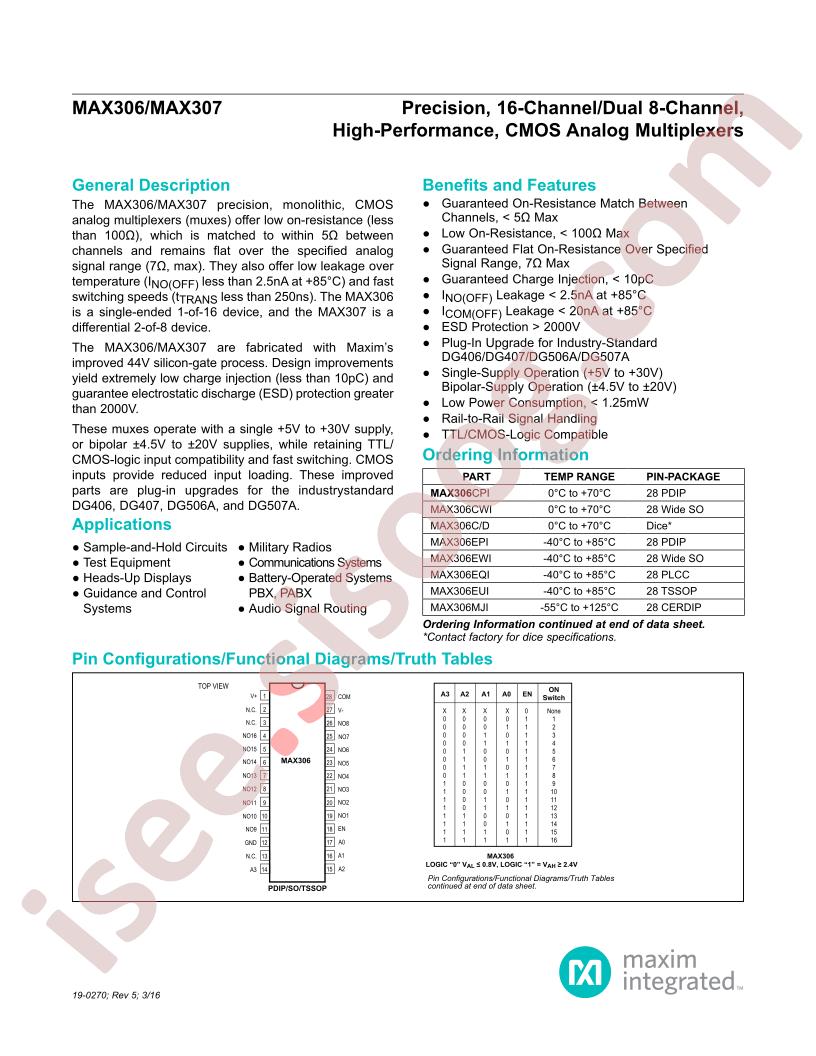

MAX306,307 12 pages

مشخصات فنی

  • Multiplexer/Demultiplexer Circuit: 16:1
  • Part Status: Active
  • Charge Injection: 2pC
  • -3db Bandwidth: -
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Voltage - Supply, Dual (V±): ±4.5V ~ 20V
  • Supplier Device Package: 28-PLCC (11.51x11.51)
  • Package / Case: 28-LCC (J-Lead)
  • Switch Time (Ton, Toff) (Max): 200ns, 150ns
  • Packaging: Cut Tape (CT)
  • Channel-to-Channel Matching (ΔRon): 1.5Ohm
  • Voltage - Supply, Single (V+): 5V ~ 30V
  • Channel Capacitance (CS(off), CD(off)): 8pF, 130pF
  • Switch Circuit: -
  • Mounting Type: Surface Mount
  • Series: -
  • Crosstalk: -92dB @ 100kHz
  • Number of Circuits: 1
  • Manufacturer: Maxim Integrated
  • Current - Leakage (IS(off)) (Max): 500pA
  • Base Part Number: MAX306
  • On-State Resistance (Max): 100Ohm
  • detail: 1 Circuit IC Switch 16:1 100Ohm 28-PLCC (11.51x11.51)
