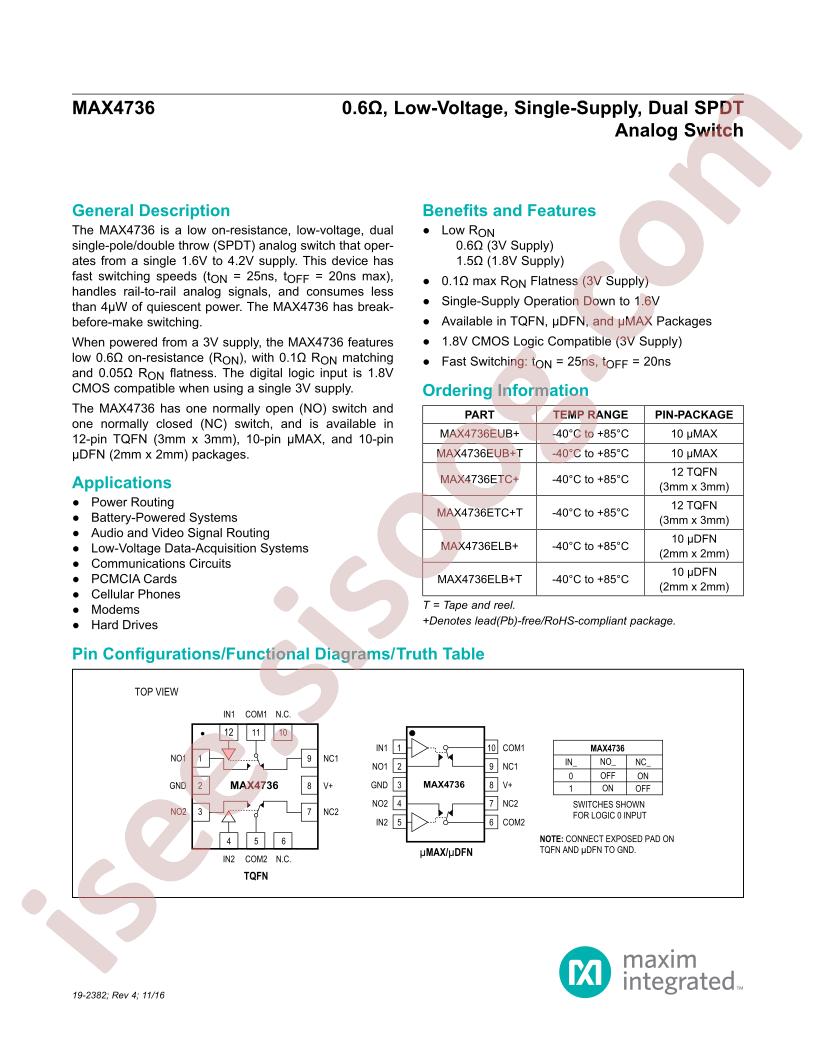

دیتاشیت MAX4736EGC+TGH7
مشخصات دیتاشیت
| نام دیتاشیت |
MAX4736
|
| حجم فایل |
618.51
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
Multiplexer/Demultiplexer Circuit:
2:1
-
Part Status:
Active
-
Charge Injection:
60pC
-
-3db Bandwidth:
130MHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Voltage - Supply, Dual (V±):
-
-
Supplier Device Package:
12-QFN (3x3)
-
Package / Case:
12-VFQFN Exposed Pad
-
Switch Time (Ton, Toff) (Max):
25ns, 20ns
-
Packaging:
Tape & Reel (TR)
-
Channel-to-Channel Matching (ΔRon):
100mOhm
-
Voltage - Supply, Single (V+):
1.6V ~ 4.2V
-
Channel Capacitance (CS(off), CD(off)):
33pF, 60pF
-
Switch Circuit:
SPDT
-
Mounting Type:
Surface Mount
-
Series:
-
-
Crosstalk:
-78dB @ 1MHz
-
Number of Circuits:
2
-
Manufacturer:
Maxim Integrated
-
Current - Leakage (IS(off)) (Max):
1nA
-
Base Part Number:
MAX4736
-
On-State Resistance (Max):
800mOhm
-
detail:
2 Circuit IC Switch 2:1 800mOhm 12-QFN (3x3)
