Part Numbering System Datasheet

Part Numbering System

Datasheet specifications

Datasheet's name Part Numbering System
File size 107.748 KB
File type pdf
Number of pages 7

Download Datasheet Part Numbering System

Download Datasheet

Other documentations

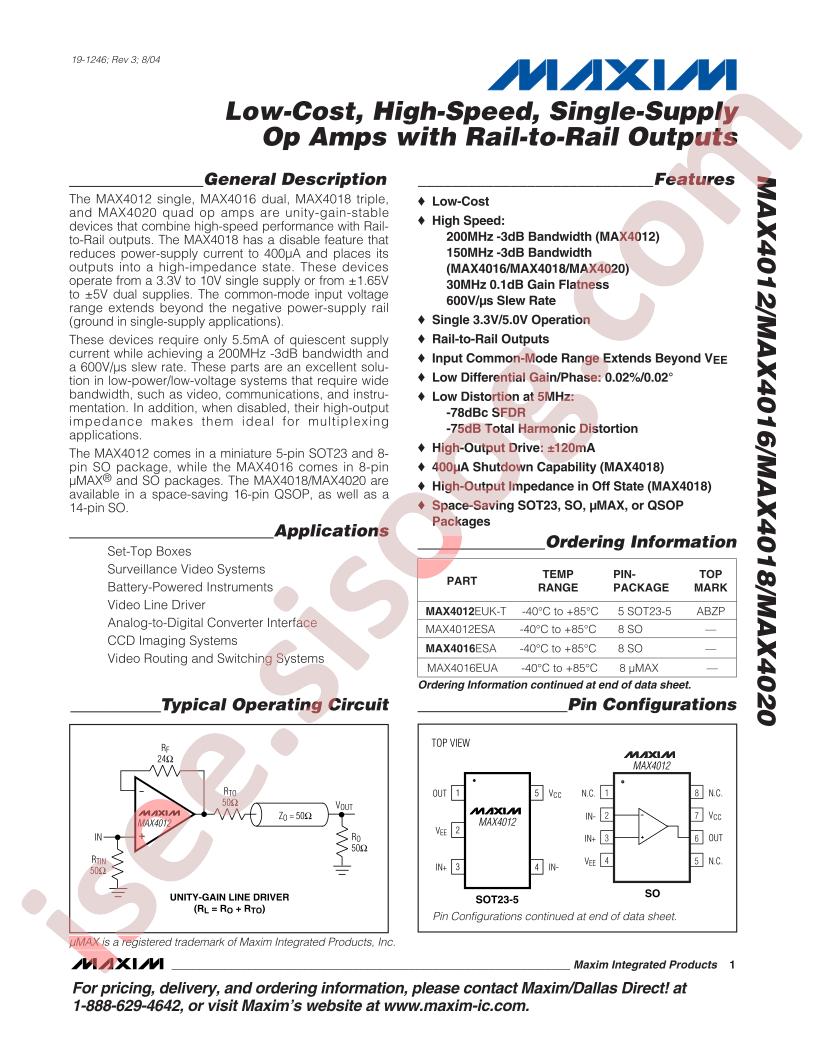

MAX4012,16,18,20 17 pages

Technical specifications

  • Voltage - Supply, Single/Dual (±): 3.15V ~ 11V, ±1.575V ~ 5.5V
  • Current - Supply: 5.5mA
  • Supplier Device Package: 8-SOIC
  • -3db Bandwidth: 200MHz
  • Current - Output / Channel: 120mA
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Slew Rate: 600V/µs
  • Current - Input Bias: 5.4µA
  • Part Status: Active
  • Amplifier Type: Voltage Feedback
  • Operating Temperature: -40°C ~ 85°C
  • Output Type: Rail-to-Rail
  • Series: -
  • Mounting Type: Surface Mount
  • Number of Circuits: 1
  • Packaging: Cut Tape (CT)
  • Voltage - Input Offset: 4mV
  • Base Part Number: MAX4012
  • Manufacturer: Maxim Integrated
  • detail: Voltage Feedback Amplifier 1 Circuit Rail-to-Rail 8-SOIC
