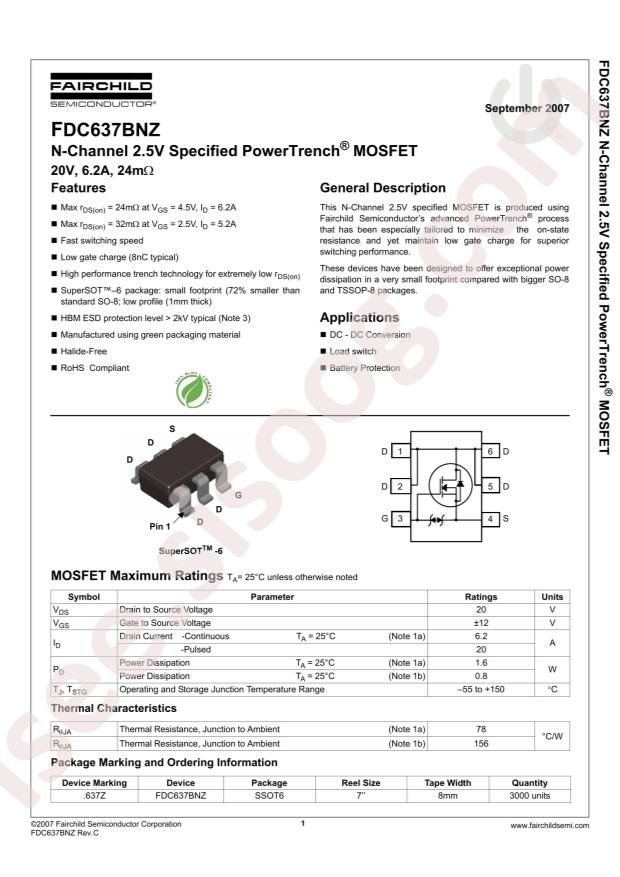

FDC637BNZ دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDC637BNZ
|
|
حجم فایل
|
83.204
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDC637BNZ
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.6W
-
Total Gate Charge (Qg@Vgs):
12nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
895pF@10V
-
Continuous Drain Current (Id):
6.2A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
24mΩ@4.5V,6.2A
-
Package:
SSOT-6
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
6.2A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 4.5V
-
Rds On (Max) @ Id, Vgs:
24mOhm @ 6.2A, 4.5V
-
Vgs(th) (Max) @ Id:
1.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
12nC @ 4.5V
-
Vgs (Max):
±12V
-
Input Capacitance (Ciss) (Max) @ Vds:
895pF @ 10V
-
FET Feature:
-
-
Power Dissipation (Max):
1.6W (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SuperSOT™-6
-
Package / Case:
SOT-23-6 Thin, TSOT-23-6
-
Base Part Number:
FDC637
-
detail:
N-Channel 20V 6.2A (Ta) 1.6W (Ta) Surface Mount SuperSOT™-6
