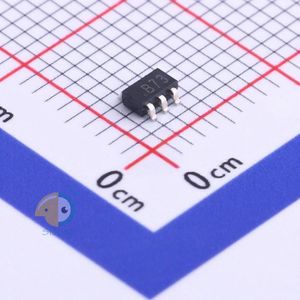

FDC637BNZ
در 0 فروشگاه
قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | SOT-23-6 Thin, TSOT-23-6 |
| Datasheet | FDC637BNZ |
| Description | N-Channel 20V 6.2A (Ta) 1.6W (Ta) Surface Mount SuperSOT™-6 |
sellers FDC637BNZ
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi FDC637BNZ
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 1.6W
- Total Gate Charge (Qg@Vgs) 12nC@4.5V
- Drain Source Voltage (Vdss) 20V
- Input Capacitance (Ciss@Vds) 895pF@10V
- Continuous Drain Current (Id) 6.2A
- Gate Threshold Voltage (Vgs(th)@Id) 1.5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 24mΩ@4.5V,6.2A
- Package SSOT-6
- Manufacturer onsemi
- Series PowerTrench®
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 20V
- Current - Continuous Drain (Id) @ 25°C 6.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs 24mOhm @ 6.2A, 4.5V
- Vgs(th) (Max) @ Id 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 12nC @ 4.5V
- Vgs (Max) ±12V
- Input Capacitance (Ciss) (Max) @ Vds 895pF @ 10V
- FET Feature -
- Power Dissipation (Max) 1.6W (Ta)
- Mounting Type Surface Mount
- Supplier Device Package SuperSOT™-6
- Package / Case SOT-23-6 Thin, TSOT-23-6
- Base Part Number FDC637
- detail N-Channel 20V 6.2A (Ta) 1.6W (Ta) Surface Mount SuperSOT™-6
