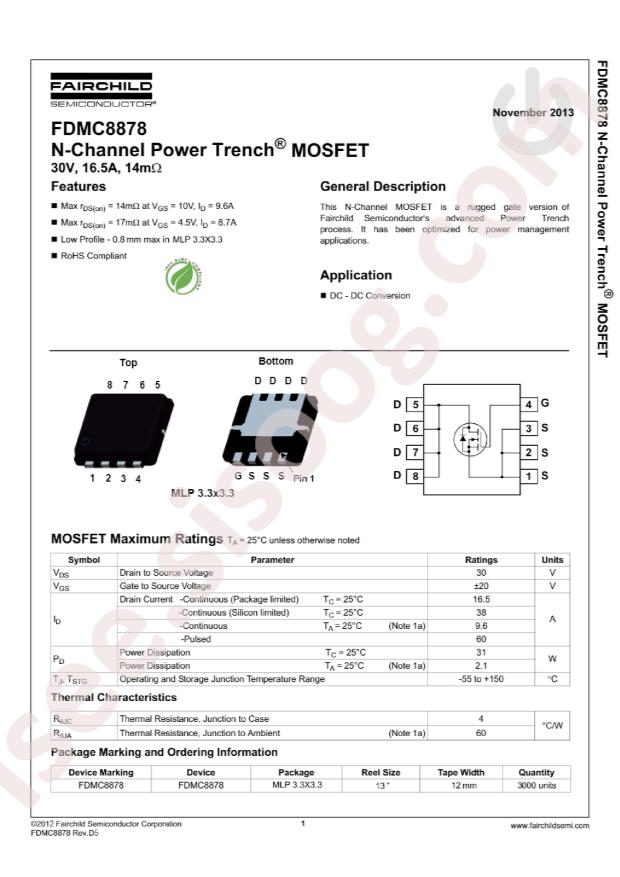

FDMC8878 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDMC8878
|
|
حجم فایل
|
72.093
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDMC8878
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2.1W;31W
-
Total Gate Charge (Qg@Vgs):
26nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
1230pF@15V
-
Continuous Drain Current (Id):
9.6A;16.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
118pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
9.6mΩ@10V,9.6A
-
Package:
MLP-8
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
9.6A (Ta), 16.5A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
14mOhm @ 9.6A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
26nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1230pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
2.1W (Ta), 31W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-MLP (3.3x3.3), Power33
-
Package / Case:
8-PowerWDFN
-
Base Part Number:
FDMC88
-
detail:
N-Channel 30V 9.6A (Ta), 16.5A (Tc) 2.1W (Ta), 31W (Tc) Surface Mount 8-MLP (3.3x3.3), Power33
