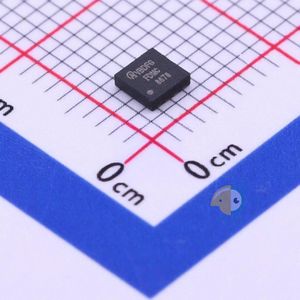

FDMC8878
در 0 فروشگاه
قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 8-PowerWDFN |
| Datasheet | FDMC8878 |
| Description | N-Channel 30V 9.6A (Ta), 16.5A (Tc) 2.1W (Ta), 31W (Tc) Surface Mount 8-MLP (3.3x3.3), Power33 |
sellers FDMC8878
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi FDMC8878
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 2.1W;31W
- Total Gate Charge (Qg@Vgs) 26nC@10V
- Drain Source Voltage (Vdss) 30V
- Input Capacitance (Ciss@Vds) 1230pF@15V
- Continuous Drain Current (Id) 9.6A;16.5A
- Gate Threshold Voltage (Vgs(th)@Id) 3V@250uA
- Reverse Transfer Capacitance (Crss@Vds) 118pF@15V
- Drain Source On Resistance (RDS(on)@Vgs,Id) 9.6mΩ@10V,9.6A
- Package MLP-8
- Manufacturer onsemi
- Series PowerTrench®
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 30V
- Current - Continuous Drain (Id) @ 25°C 9.6A (Ta), 16.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Rds On (Max) @ Id, Vgs 14mOhm @ 9.6A, 10V
- Vgs(th) (Max) @ Id 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 26nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 1230pF @ 15V
- FET Feature -
- Power Dissipation (Max) 2.1W (Ta), 31W (Tc)
- Mounting Type Surface Mount
- Supplier Device Package 8-MLP (3.3x3.3), Power33
- Package / Case 8-PowerWDFN
- Base Part Number FDMC88
- detail N-Channel 30V 9.6A (Ta), 16.5A (Tc) 2.1W (Ta), 31W (Tc) Surface Mount 8-MLP (3.3x3.3), Power33
