- دیتاشیت MMBF0201NLT1G
MMBF0201NLT1G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MMBF0201NLT1G |
|---|---|
| حجم فایل | 87.254 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت MMBF0201NLT1G |
دانلود دیتاشیت |
|---|
سایر مستندات
MMBF,MVMBF0201NLT1 5 pages
مشخصات فنی
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi MMBF0201NLT1G
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 225mW
- Drain Source Voltage (Vdss): 20V
- Input Capacitance (Ciss@Vds): 45pF@5V
- Continuous Drain Current (Id): 300mA
- Gate Threshold Voltage (Vgs(th)@Id): 2.4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 1Ω@10V,300mA

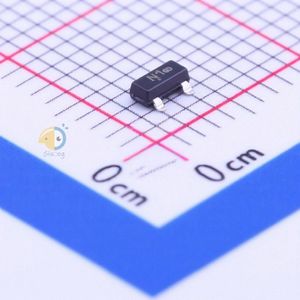

- Package: SOT-23(TO-236)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 300mA (Ta)
- Rds On (Max) @ Id, Vgs: 1Ohm @ 300mA, 10V
- Vgs(th) (Max) @ Id: 2.4V @ 250µA
- Input Capacitance (Ciss) (Max) @ Vds: 45pF @ 5V
- FET Feature: -
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-3 (TO-236)
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Base Part Number: MMBF02
- detail: N-Channel 20V 300mA (Ta) Surface Mount SOT-23-3 (TO-236)
