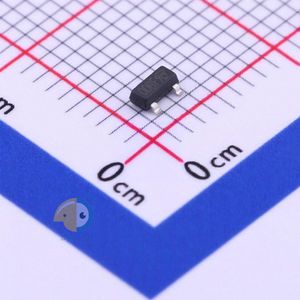

MMBF0201NLT1G
در 0 فروشگاه
قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-236-3, SC-59, SOT-23-3 |
| Datasheet | MMBF,MVMBF0201NLT1 |
| Description | N-Channel 20V 300mA (Ta) Surface Mount SOT-23-3 (TO-236) |
sellers MMBF0201NLT1G
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi MMBF0201NLT1G
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 225mW
- Drain Source Voltage (Vdss) 20V
- Input Capacitance (Ciss@Vds) 45pF@5V
- Continuous Drain Current (Id) 300mA
- Gate Threshold Voltage (Vgs(th)@Id) 2.4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 1Ω@10V,300mA
- Package SOT-23(TO-236)
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Obsolete
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 20V
- Current - Continuous Drain (Id) @ 25°C 300mA (Ta)
- Rds On (Max) @ Id, Vgs 1Ohm @ 300mA, 10V
- Vgs(th) (Max) @ Id 2.4V @ 250µA
- Input Capacitance (Ciss) (Max) @ Vds 45pF @ 5V
- FET Feature -
- Mounting Type Surface Mount
- Supplier Device Package SOT-23-3 (TO-236)
- Package / Case TO-236-3, SC-59, SOT-23-3
- Base Part Number MMBF02
- detail N-Channel 20V 300mA (Ta) Surface Mount SOT-23-3 (TO-236)
