ISD4003-08MPY Datasheet

ISD4003 Series Single-Chip Voice Record/Playback Devices

Datasheet specifications

Datasheet's name ISD4003 Series Single-Chip Voice Record/Playback Devices
File size 347.512 KB
File type pdf
Number of pages 37

Download Datasheet ISD4003 Series Single-Chip Voice Record/Playback Devices

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Nuvoton Technology Corporation of America
  • Series: ChipCorder®
  • Part Status: Obsolete
  • Interface: SPI
  • Input Signal: Analog - Differential
  • Output Signal: Analog - Single Ended
  • Sampling Frequency: 4kHz
  • Duration: 8 Min
  • Filter Pass Band: 1.7kHz
  • Messaging: Multiple
  • Oscillator Type: Internal/External
  • Features: Auto Mute
  • Operating Temperature: 0°C ~ 70°C (TA)
  • Voltage - Supply: 2.7V ~ 3.3V
  • Mounting Type: Through Hole

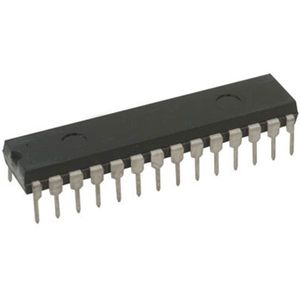

  • Package / Case: 28-DIP (0.600", 15.24mm)
  • Supplier Device Package: 28-DIP
  • detail: Voice Record/Playback IC Multiple Message 8 Min SPI 28-DIP
