دیتاشیت MPSA29-D26Z
مشخصات دیتاشیت
| نام دیتاشیت |
MPSA28, MPSA29
|
| حجم فایل |
144.774
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistors
-
Datasheet:

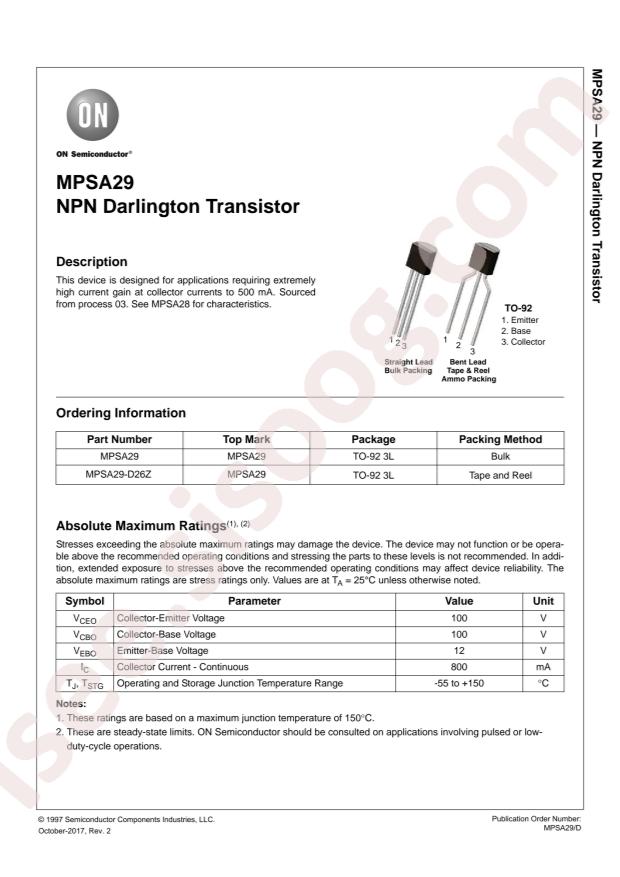

onsemi MPSA29-D26Z
-
Transistor Type:
NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
800mA
-
Power Dissipation (Pd):
625mW
-
Transition frequency (fT):
125MHz
-
DC current gain (hFE@Vce,Ic):
10000@5V,100mA
-
Collector-emitter voltage (Vceo):
100V
-
Collector cut-off current (Icbo@Vcb):
500nA
-
Collector-emitter saturation voltage (VCE(sat)@Ic,Ib):
1.5V@100mA,100uA
-
Package:
TO-92-3
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
800mA
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
1.5V @ 100µA, 100mA
-
Current - Collector Cutoff (Max):
500nA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
10000 @ 100mA, 5V
-
Power - Max:
625mW
-
Frequency - Transition:
125MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
-
Supplier Device Package:
TO-92-3
-
Base Part Number:
MPSA29
-
detail:
Bipolar (BJT) Transistor NPN - Darlington 100V 800mA 125MHz 625mW Through Hole TO-92-3
