دیتاشیت NTD20N03L27T4G
مشخصات دیتاشیت
| نام دیتاشیت | NTD20N03L27, NVD20N03L27 |
|---|---|
| حجم فایل | 97.34 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت NTD20N03L27, NVD20N03L27 |

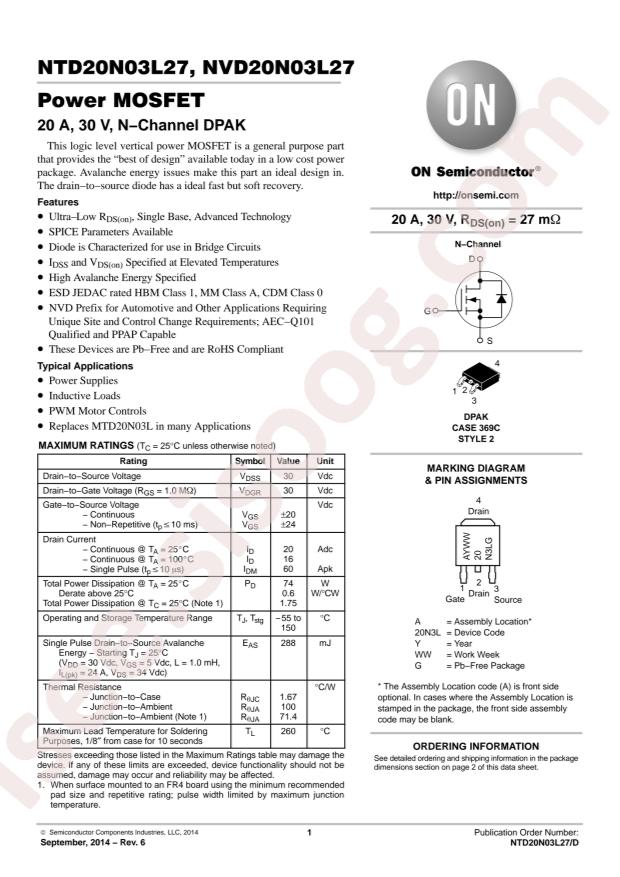

NTD20N03L27, NVD20N03L27 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi NTD20N03L27T4G
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 1.75W;74W
- Total Gate Charge (Qg@Vgs): 18.9nC@10V
- Drain Source Voltage (Vdss): 30V
- Input Capacitance (Ciss@Vds): 1260pF@25V
- Continuous Drain Current (Id): 20A
- Gate Threshold Voltage (Vgs(th)@Id): 2V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 27mΩ@5V,10A
- Package: TO-252
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4V, 5V
- Rds On (Max) @ Id, Vgs: 27mOhm @ 10A, 5V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 18.9nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1260pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 1.75W (Ta), 74W (Tc)
- Mounting Type: Surface Mount
- Supplier Device Package: DPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number: NTD20
- detail: N-Channel 30V 20A (Ta) 1.75W (Ta), 74W (Tc) Surface Mount DPAK
