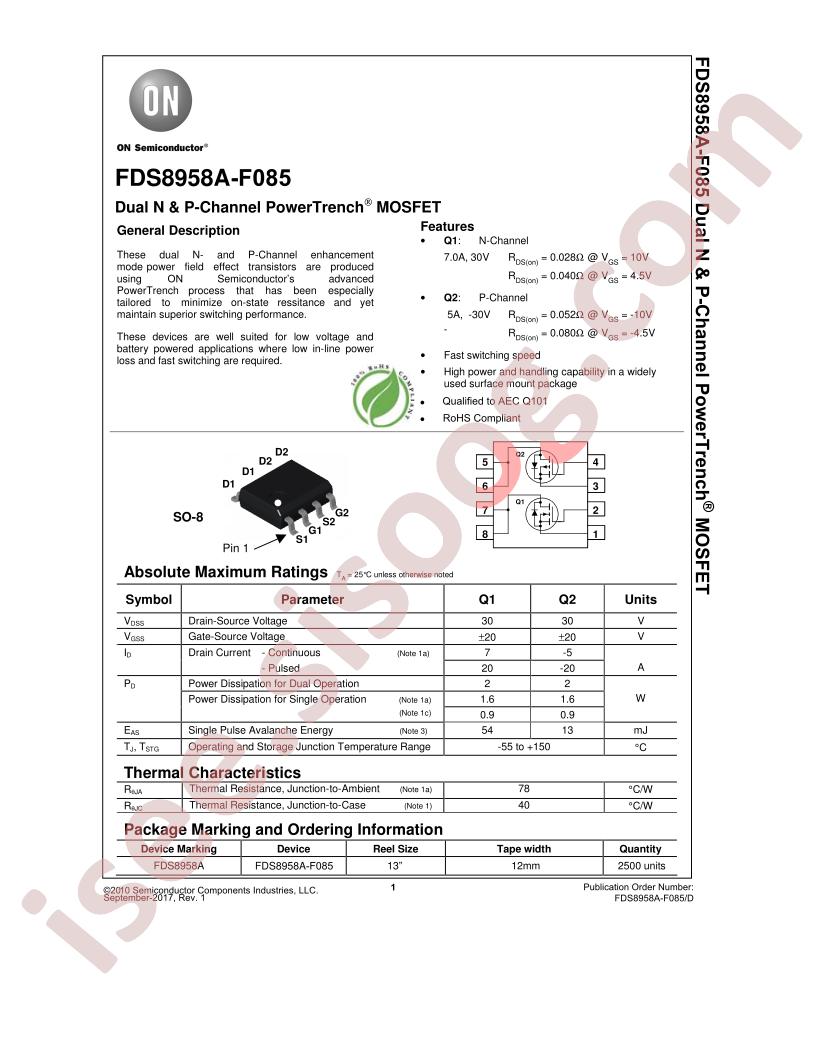

دیتاشیت FDS8958A-F085
مشخصات دیتاشیت
| نام دیتاشیت |
FDS8958A_F085
|
| حجم فایل |
550.302
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDS8958A-F085
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
900mW
-
Total Gate Charge (Qg@Vgs):
16nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
575pF@15V
-
Continuous Drain Current (Id):
7A;5A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
28mΩ@7A,10V
-
Package:
SOP-8
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101, PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N and P-Channel
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
7A, 5A
-
Rds On (Max) @ Id, Vgs:
28mOhm @ 7A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
16nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
575pF @ 15V
-
Power - Max:
900mW
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
FDS89
-
detail:
Mosfet Array N and P-Channel 30V 7A, 5A 900mW Surface Mount 8-SOIC
