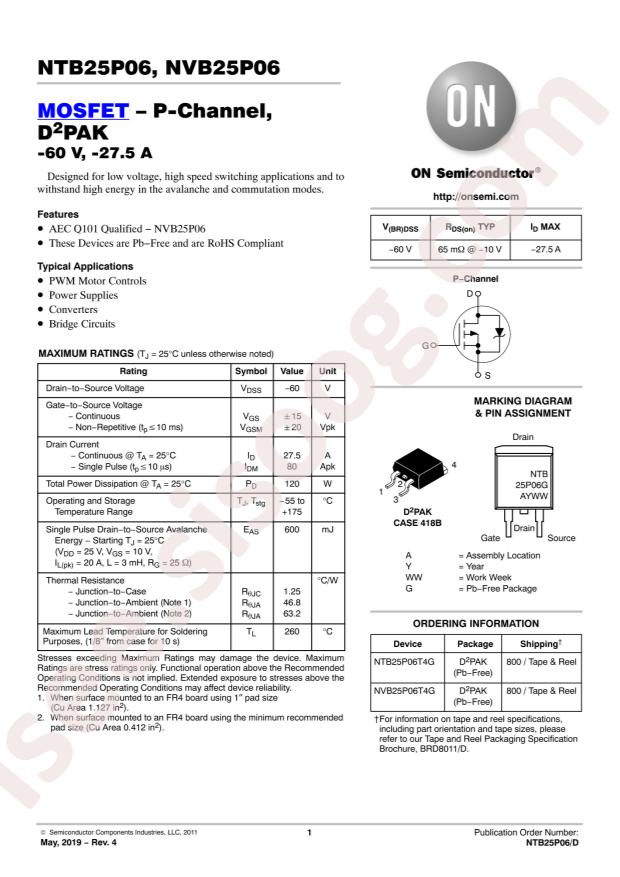

NTB25P06T4G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTB25P06T4G
|
|
حجم فایل
|
86.166
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTB25P06T4G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
120W
-
Total Gate Charge (Qg@Vgs):
50nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
1680pF@25V
-
Continuous Drain Current (Id):
27.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
82mΩ@10V,25A
-
Package:
TO-263
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
27.5A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
82mOhm @ 25A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
50nC @ 10V
-
Vgs (Max):
±15V
-
Input Capacitance (Ciss) (Max) @ Vds:
1680pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
120W (Tj)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D2PAK
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
NTB25
-
detail:
P-Channel 60V 27.5A (Ta) 120W (Tj) Surface Mount D2PAK
