NVB190N65S3F دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

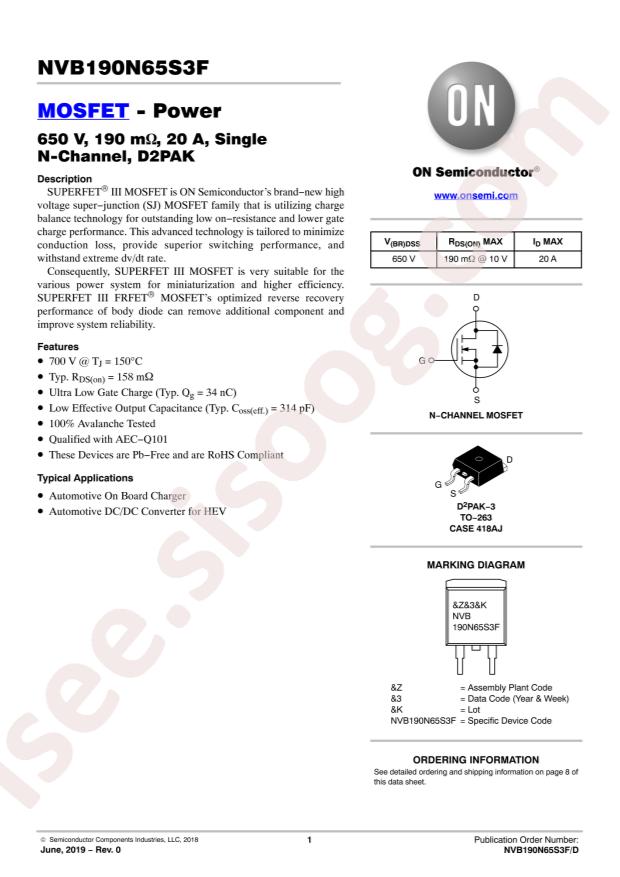

NVB190N65S3F
|
|
حجم فایل
|
69.197
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVB190N65S3F
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
162W
-
Total Gate Charge (Qg@Vgs):
34nC@10V
-
Drain Source Voltage (Vdss):
650V
-
Input Capacitance (Ciss@Vds):
1.605nF@400V
-
Continuous Drain Current (Id):
20A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@430uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
158mΩ@10V,10A
-
Package:
D2PAK
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101, SuperFET® III
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
650V
-
Current - Continuous Drain (Id) @ 25°C:
20A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
190mOhm @ 10A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 430µA
-
Gate Charge (Qg) (Max) @ Vgs:
34nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
1605pF @ 400V
-
FET Feature:
-
-
Power Dissipation (Max):
162W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D2PAK-3 (TO-263)
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
NVB190
-
detail:
N-Channel 650V 20A (Tc) 162W (Tc) Surface Mount D2PAK-3 (TO-263)
