MMBT3416LT3G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

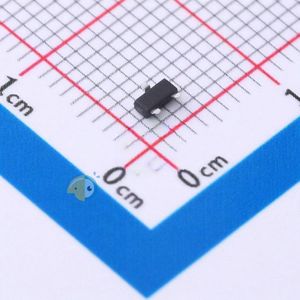

MMBT3416LT3G
|
|
حجم فایل
|
50.018
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi MMBT3416LT3G
-
Transistor Type:
NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
100mA
-
Power Dissipation (Pd):
225mW
-
Transition Frequency (fT):
-
-
DC Current Gain (hFE@Ic,Vce):
75@2mA,4.5V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
40V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
300mV@50mA,3mA
-
Package:
SOT-23(TO-236)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
500mA
-
Voltage - Collector Emitter Breakdown (Max):
50V
-
Vce Saturation (Max) @ Ib, Ic:
-
-
Current - Collector Cutoff (Max):
-
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
-
-
Power - Max:
350mW
-
Frequency - Transition:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Supplier Device Package:
SOT-23-3
-
Base Part Number:
MMBT3416
-
detail:
Bipolar (BJT) Transistor NPN 50V 500mA 350mW Surface Mount SOT-23-3
