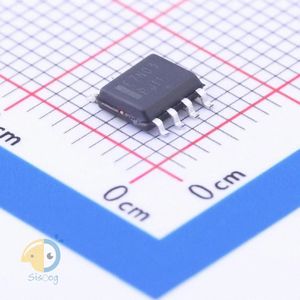

NTMS7N03R2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTMS7N03R2G
|
|
حجم فایل
|
52.38
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:

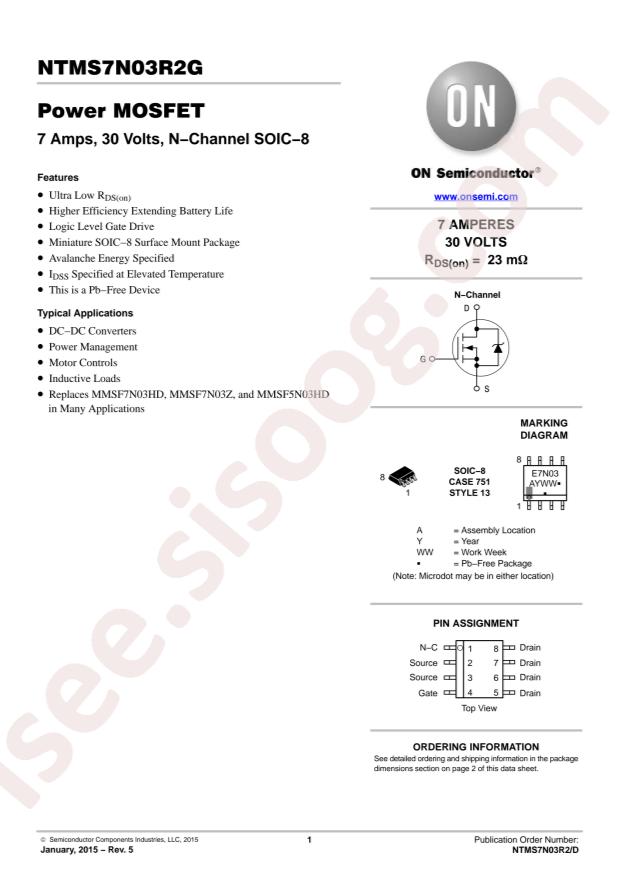

onsemi NTMS7N03R2G
-
Power Dissipation (Pd):
800mW
-
Drain Source Voltage (Vdss):
30V
-
Continuous Drain Current (Id):
4.8A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
23mΩ@10V,7A
-
Package:
SOP-8
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
4.8A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
23mOhm @ 7A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
43nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1190pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
800mW (Ta)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-SOIC
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
NTMS7N
-
detail:
N-Channel 30V 4.8A (Ta) 800mW (Ta) Surface Mount 8-SOIC
