BD242CG دیتاشیت

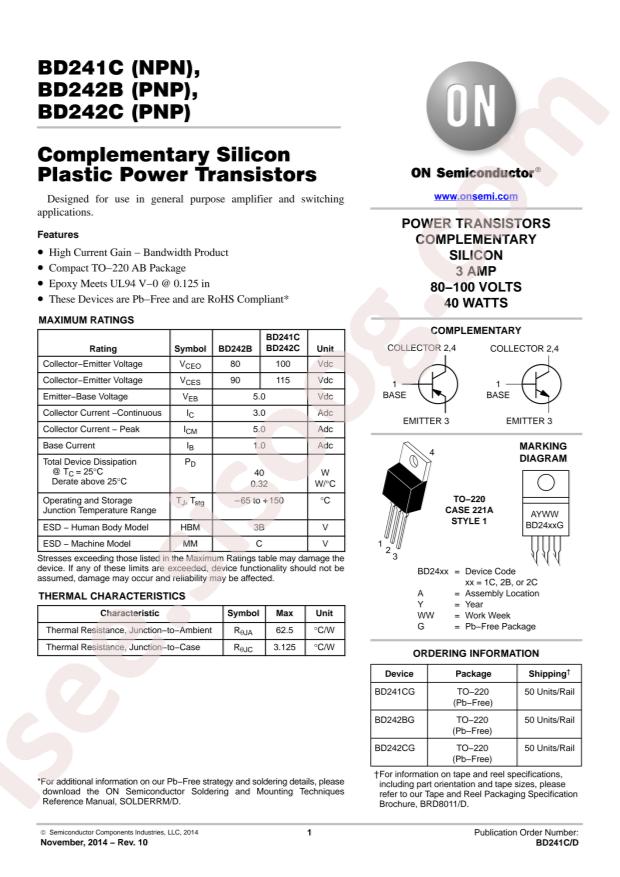

مشخصات دیتاشیت
|
نام دیتاشیت
|
BD242CG
|
|
حجم فایل
|
91.009
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi BD242CG
-
Transistor Type:
PNP
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
3A
-
Power Dissipation (Pd):
40W
-
Transition Frequency (fT):
3MHz
-
DC Current Gain (hFE@Ic,Vce):
25@1A,4V
-
Collector Cut-Off Current (Icbo):
300uA
-
Collector-Emitter Breakdown Voltage (Vceo):
100V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
1.2V@3A,600mA
-
Package:
TO-220
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
3A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
1.2V @ 600mA, 3A
-
Current - Collector Cutoff (Max):
300µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
25 @ 1A, 4V
-
Power - Max:
40W
-
Frequency - Transition:
3MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
BD242
-
detail:
Bipolar (BJT) Transistor PNP 100V 3A 3MHz 40W Through Hole TO-220AB
