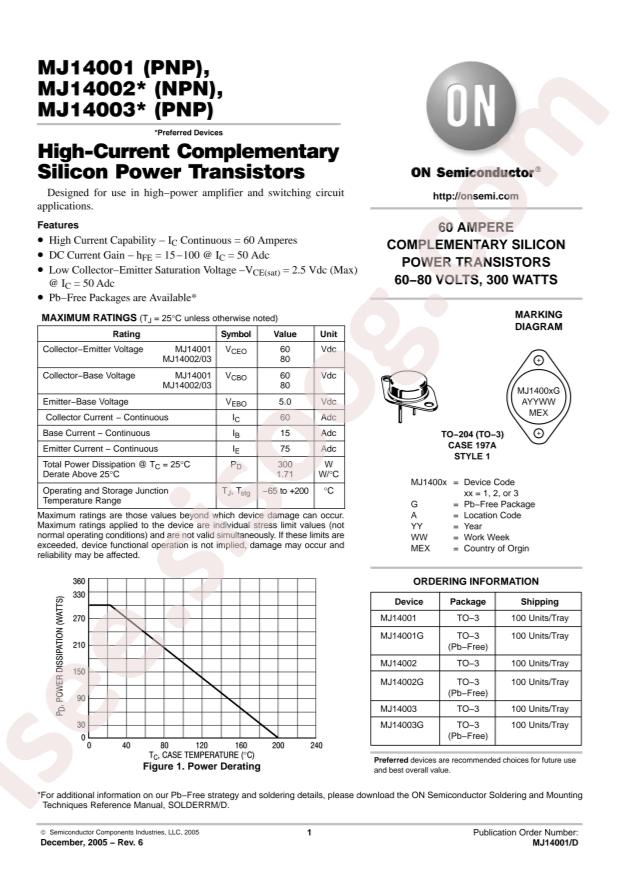

MJ14002G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MJ14002G
|
|
حجم فایل
|
98.211
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi MJ14002G
-
Transistor Type:
NPN
-
Operating Temperature:
-65°C~+200°C@(Tj)
-
Collector Current (Ic):
60A
-
Power Dissipation (Pd):
300W
-
DC Current Gain (hFE@Ic,Vce):
15@50A,3V
-
Collector Cut-Off Current (Icbo):
1mA
-
Collector-Emitter Breakdown Voltage (Vceo):
80V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
3V@12A,60A
-
Package:
TO-204
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tray
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
60A
-
Voltage - Collector Emitter Breakdown (Max):
80V
-
Vce Saturation (Max) @ Ib, Ic:
3V @ 12A, 60A
-
Current - Collector Cutoff (Max):
1mA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
15 @ 50A, 3V
-
Power - Max:
300W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-204AE
-
Supplier Device Package:
TO-3
-
Base Part Number:
MJ140
-
detail:
Bipolar (BJT) Transistor NPN 80V 60A 300W Through Hole TO-3
