دیتاشیت FQPF8N80C

FQP8N80C, FQPF8N80C

مشخصات دیتاشیت

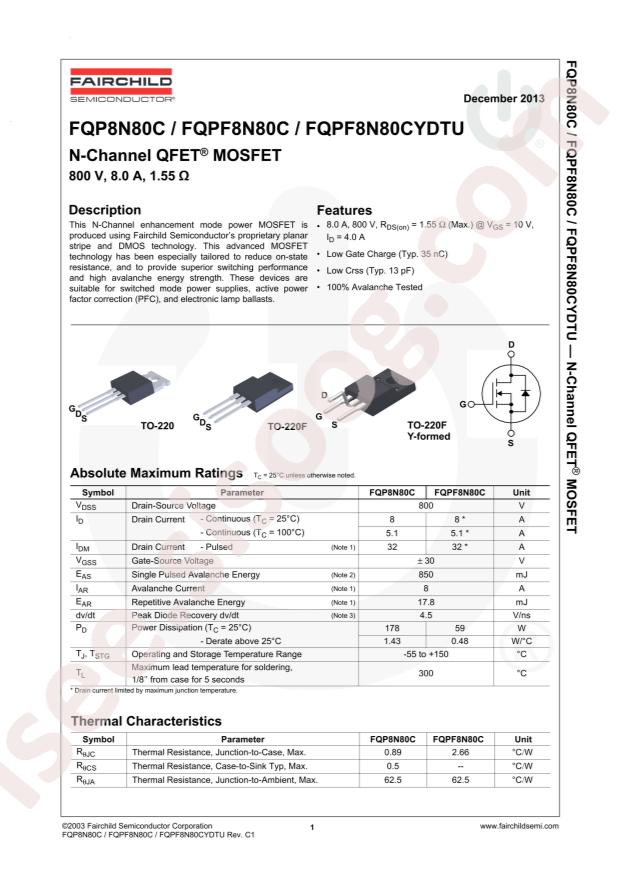

نام دیتاشیت FQP8N80C, FQPF8N80C
حجم فایل 1297.812 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت FQP8N80C, FQPF8N80C

FQP8N80C, FQPF8N80C Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FQPF8N80C
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 59W
  • Total Gate Charge (Qg@Vgs): 45nC@10V
  • Drain Source Voltage (Vdss): 800V
  • Input Capacitance (Ciss@Vds): 2050pF@25V
  • Continuous Drain Current (Id): 8A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1.55Ω@10V,4A
  • Package: TO-220F
  • Manufacturer: onsemi
  • Series: QFET®
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 800V
  • Current - Continuous Drain (Id) @ 25°C: 8A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.55Ohm @ 4A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 45nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 2050pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 59W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220F
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: FQPF8
  • detail: N-Channel 800V 8A (Tc) 59W (Tc) Through Hole TO-220F
