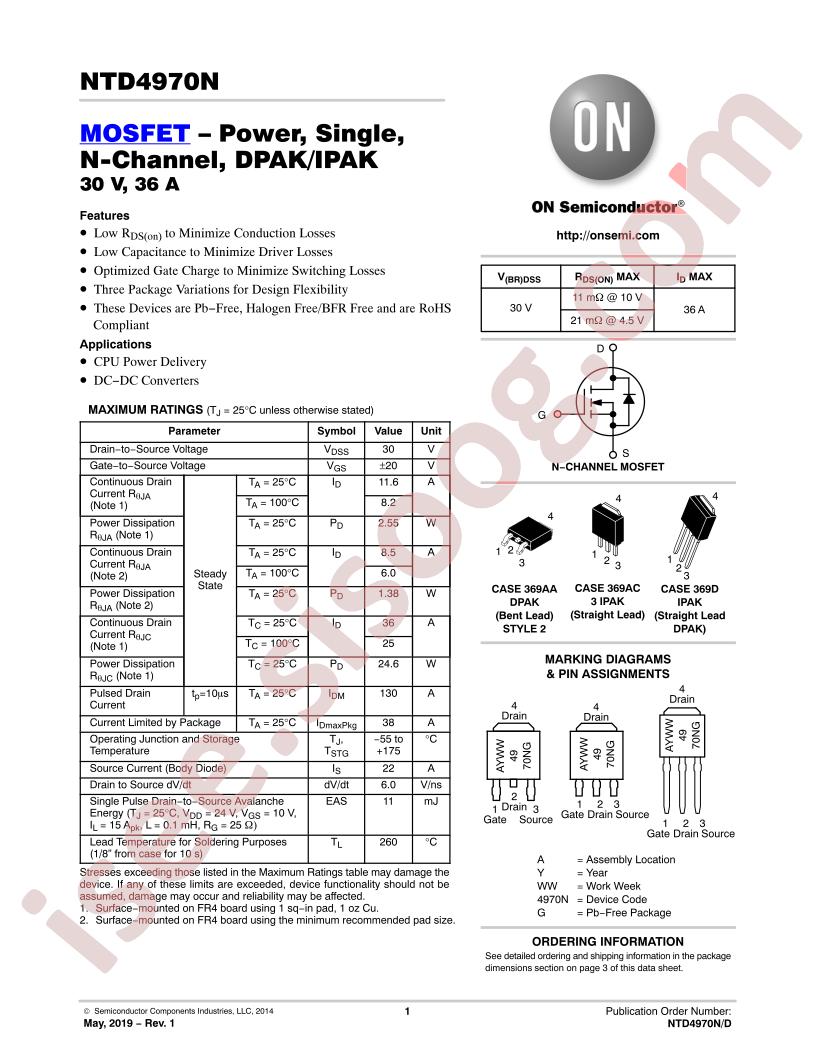

دیتاشیت NTD4970N-35G
مشخصات دیتاشیت
| نام دیتاشیت |
NTD4970N
|
| حجم فایل |
138.817
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTD4970N-35G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
24.6W
-
Total Gate Charge (Qg@Vgs):
8.2nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
774pF@15V
-
Continuous Drain Current (Id):
36A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.9V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
161pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
8.2mΩ@10V,15A
-
Package:
IPAK
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
8.5A (Ta), 36A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
11mOhm @ 30A, 10V
-
Vgs(th) (Max) @ Id:
2.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
8.2nC @ 4.5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
774pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
1.38W (Ta), 24.6W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
I-PAK
-
Package / Case:
TO-251-3 Stub Leads, IPak
-
Base Part Number:
NTD49
-
detail:
N-Channel 30V 8.5A (Ta), 36A (Tc) 1.38W (Ta), 24.6W (Tc) Through Hole I-PAK
