BUL45D2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
BUL45D2G
|
|
حجم فایل
|
90.762
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-

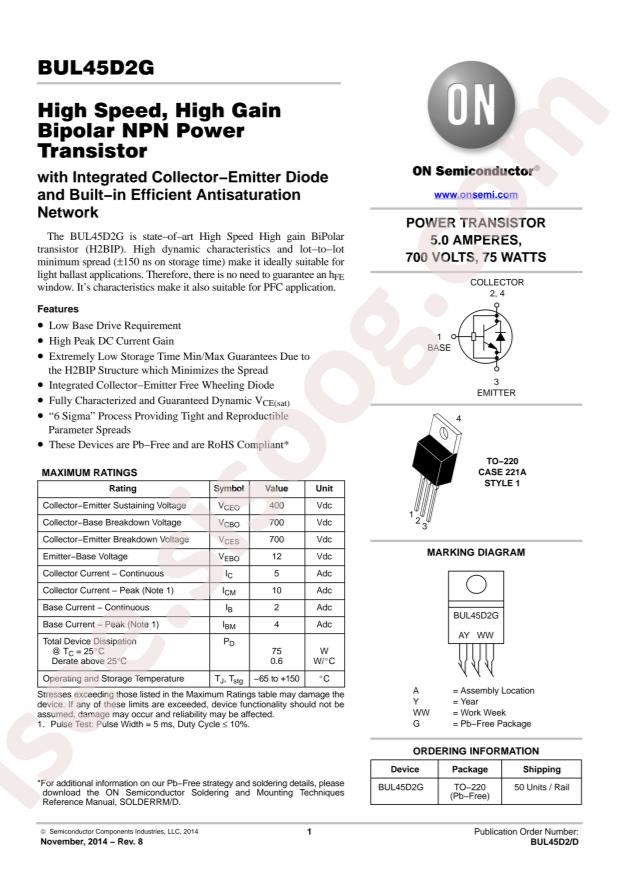

Datasheet:
onsemi BUL45D2G
-
Transistor Type:
NPN
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
5A
-
Power Dissipation (Pd):
75W
-
Transition Frequency (fT):
13MHz
-
DC Current Gain (hFE@Ic,Vce):
10@2A,1V
-
Collector Cut-Off Current (Icbo):
100uA
-
Collector-Emitter Breakdown Voltage (Vceo):
400V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
320mV@2A,400mA
-
Package:
TO-220
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
5A
-
Voltage - Collector Emitter Breakdown (Max):
400V
-
Vce Saturation (Max) @ Ib, Ic:
500mV @ 400mA, 2A
-
Current - Collector Cutoff (Max):
100µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
10 @ 2A, 1V
-
Power - Max:
75W
-
Frequency - Transition:
13MHz
-
Mounting Type:
Through Hole
-

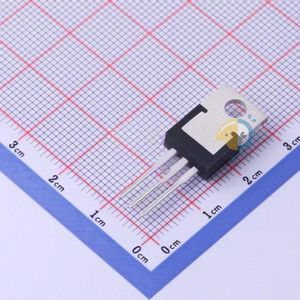

Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
BUL45
-
detail:
Bipolar (BJT) Transistor NPN 400V 5A 13MHz 75W Through Hole TO-220AB
