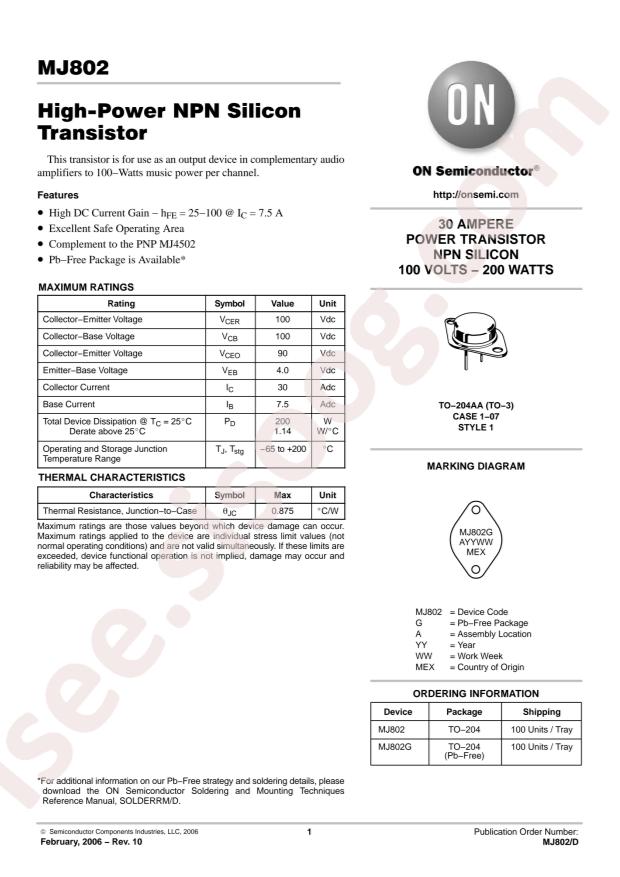

MJ802G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MJ802G
|
|
حجم فایل
|
75.998
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
4
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi MJ802G
-
Transistor Type:
NPN
-
Operating Temperature:
-65°C~+200°C@(Tj)
-
Collector Current (Ic):
30A
-
Power Dissipation (Pd):
200W
-
Transition Frequency (fT):
2MHz
-
DC Current Gain (hFE@Ic,Vce):
25@7.5A,2V
-
Collector Cut-Off Current (Icbo):
1mA
-
Collector-Emitter Breakdown Voltage (Vceo):
90V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
800mV@7.5A,750mA
-
Package:
TO-204
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
30A
-
Voltage - Collector Emitter Breakdown (Max):
90V
-
Vce Saturation (Max) @ Ib, Ic:
800mV @ 750mA, 7.5A
-
Current - Collector Cutoff (Max):
1mA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
25 @ 7.5A, 2V
-
Power - Max:
200W
-
Frequency - Transition:
2MHz
-
Mounting Type:
Chassis Mount
-
Package / Case:
TO-204AA, TO-3
-
Supplier Device Package:
TO-3
-
Base Part Number:
MJ80
-
detail:
Bipolar (BJT) Transistor NPN 90V 30A 2MHz 200W Chassis Mount TO-3
