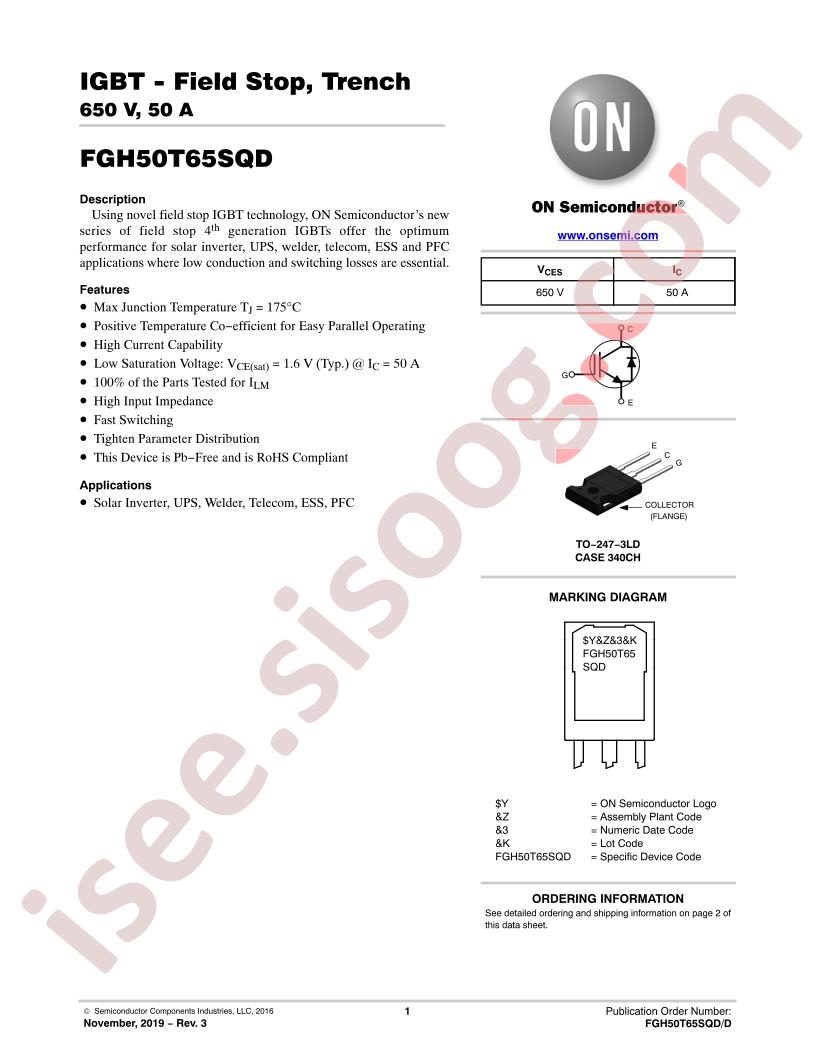

دیتاشیت FGH50T65SQD-F155
مشخصات دیتاشیت
| نام دیتاشیت |
FGH50T65SQD
|
| حجم فایل |
554.461
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Type:
Trench Field Stop
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
onsemi FGH50T65SQD-F155
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Collector Current (Ic):
100A
-
Power Dissipation (Pd):
268W
-
Turn?on Delay Time (Td(on)):
22ns
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
0.18mJ
-
Total Gate Charge (Qg@Ic,Vge):
99nC
-
Turn?off Delay Time (Td(off)):
105ns
-
Pulsed Collector Current (Icm):
200A
-
Turn?off Switching Loss (Eoff):
0.045mJ
-
Diode Reverse Recovery Time (Trr):
31ns
-
Collector-Emitter Breakdown Voltage (Vces):
650V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.1V@15V,50A
-
Package:
TO-247
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
650V
-
Current - Collector (Ic) (Max):
100A
-
Current - Collector Pulsed (Icm):
200A
-
Vce(on) (Max) @ Vge, Ic:
2.1V @ 15V, 50A
-
Power - Max:
268W
-
Switching Energy:
180µJ (on), 45µJ (off)
-
Input Type:
Standard
-
Gate Charge:
99nC
-
Td (on/off) @ 25°C:
22ns/105ns
-
Test Condition:
400V, 12.5A, 4.7Ohm, 15V
-
Reverse Recovery Time (trr):
31ns
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
FGH50
-
detail:
IGBT Trench Field Stop 650V 100A 268W Through Hole TO-247-3
