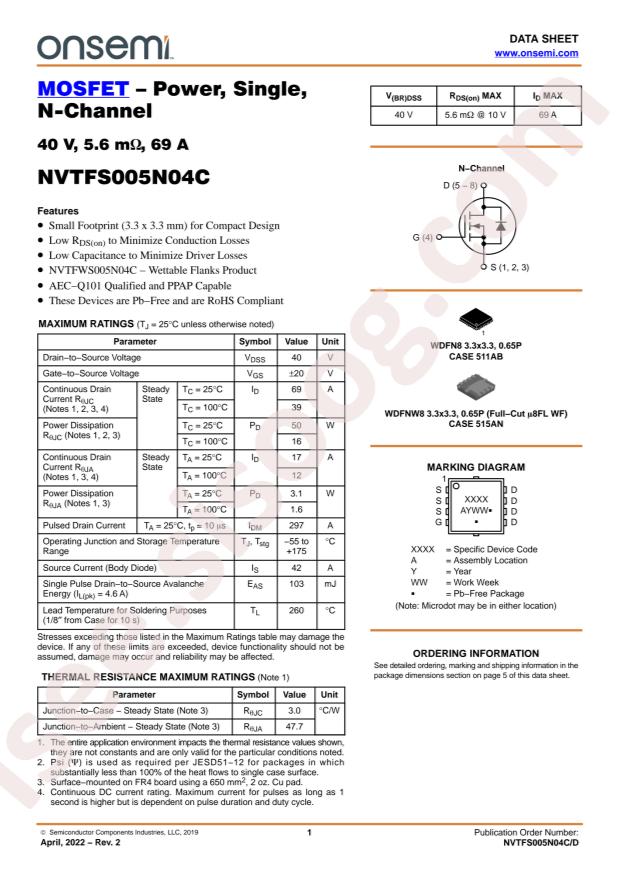

NVTFWS005N04CTAG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVTFWS005N04CTAG
|
|
حجم فایل
|
96.613
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVTFWS005N04CTAG
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
3.1W;50W
-
Total Gate Charge (Qg@Vgs):
16nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
1nF@25V
-
Continuous Drain Current (Id):
17A;69A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.5V@240uA
-
Reverse Transfer Capacitance (Crss@Vds):
22pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
4.7mΩ@10V,35A
-
Package:
DFN-8(3x3)
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
17A (Ta), 69A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
5.6mOhm @ 35A, 10V
-
Vgs(th) (Max) @ Id:
3.5V @ 40µA
-
Gate Charge (Qg) (Max) @ Vgs:
16nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1000pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
3.1W (Ta), 50W (Tc)
-
Mounting Type:
Surface Mount, Wettable Flank
-
Supplier Device Package:
8-WDFN (3.3x3.3)
-
Package / Case:
8-PowerWDFN
-
Base Part Number:
NVTFWS
-
detail:
N-Channel 40V 17A (Ta), 69A (Tc) 3.1W (Ta), 50W (Tc) Surface Mount, Wettable Flank 8-WDFN (3.3x3.3)
