دیتاشیت FDP053N08B-F102
مشخصات دیتاشیت
| نام دیتاشیت | FDP053N08B_F102 |
|---|---|
| حجم فایل | 1770.695 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 10 |
دانلود دیتاشیت FDP053N08B_F102 |

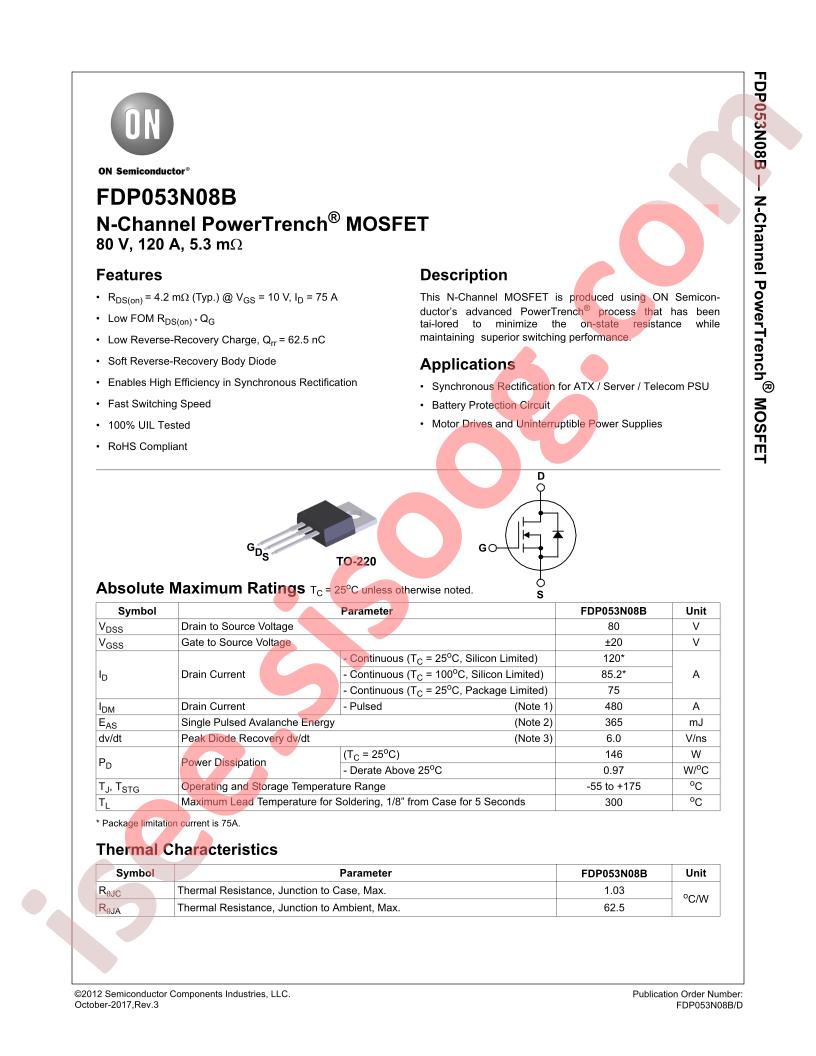

FDP053N08B_F102 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi FDP053N08B-F102
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 146W
- Total Gate Charge (Qg@Vgs): 85nC@10V
- Drain Source Voltage (Vdss): 80V
- Input Capacitance (Ciss@Vds): 5960pF@40V
- Continuous Drain Current (Id): 75A
- Gate Threshold Voltage (Vgs(th)@Id): 4.5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 5.3mΩ@75A,10V
- Package: TO-220
- Manufacturer: onsemi
- Series: PowerTrench®
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80V
- Current - Continuous Drain (Id) @ 25°C: 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 5.3mOhm @ 75A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 85nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5960pF @ 40V
- FET Feature: -
- Power Dissipation (Max): 146W (Tc)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-3
- Package / Case: TO-220-3
- Base Part Number: FDP053
- detail: N-Channel 80V 75A (Tc) 146W (Tc) Through Hole TO-220-3
