- دیتاشیت NVMFS5C612NLAFT3G

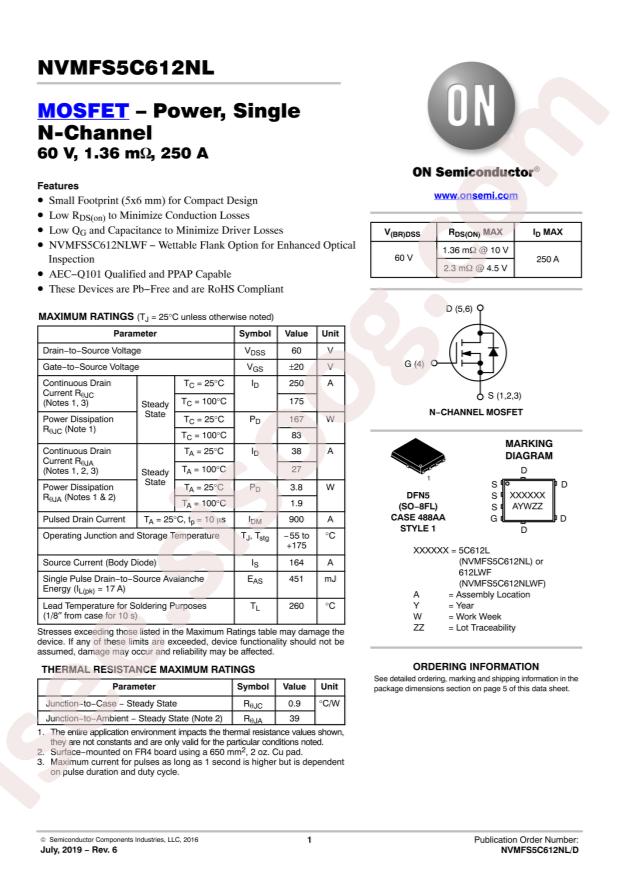

NVMFS5C612NLAFT3G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | NVMFS5C612NLAFT3G |
|---|---|
| حجم فایل | 94.12 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت NVMFS5C612NLAFT3G |
دانلود دیتاشیت |
|---|
سایر مستندات
NVMFS5C612NL 6 pages
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi NVMFS5C612NLAFT3G
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 3.8W;167W
- Total Gate Charge (Qg@Vgs): 91nC@10V
- Input Capacitance (Ciss@Vds): 6660pF@25V
- Continuous Drain Current (Id): 38A;250A
- Gate Threshold Voltage (Vgs(th)@Id): 2V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 1.36mΩ@50A,10V
- Package: SO-8FL
- Manufacturer: onsemi
- Series: Automotive, AEC-Q101
- Packaging: Tape & Reel (TR)
- Part Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 38A (Ta), 250A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.36mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 91nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6660pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 167W (Tc)
- Mounting Type: Surface Mount
- Supplier Device Package: 5-DFN (5x6) (8-SOFL)
- Package / Case: 8-PowerTDFN, 5 Leads
- Base Part Number: NVMFS5
- detail: N-Channel 60V 38A (Ta), 250A (Tc) 3.8W (Ta), 167W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
