- FDN336P
FDN336P-NL Datasheet
Datasheet specifications
| Datasheet's name | FDN336P |
|---|---|
| File size | 201.578 KB |
| File type | |
| Number of pages | 5 |
Download Datasheet FDN336P |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: ON Semiconductor
- Series: PowerTrench®
- Packaging: Tape & Reel (TR)
- Part Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 1.3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 200mOhm @ 1.3A, 4.5V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5nC @ 4.5V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 330pF @ 10V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount

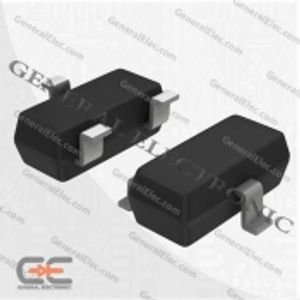

- Supplier Device Package: SuperSOT-3
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Base Part Number: FDN336
- detail: P-Channel 20V 1.3A (Ta) 500mW (Ta) Surface Mount SuperSOT-3
