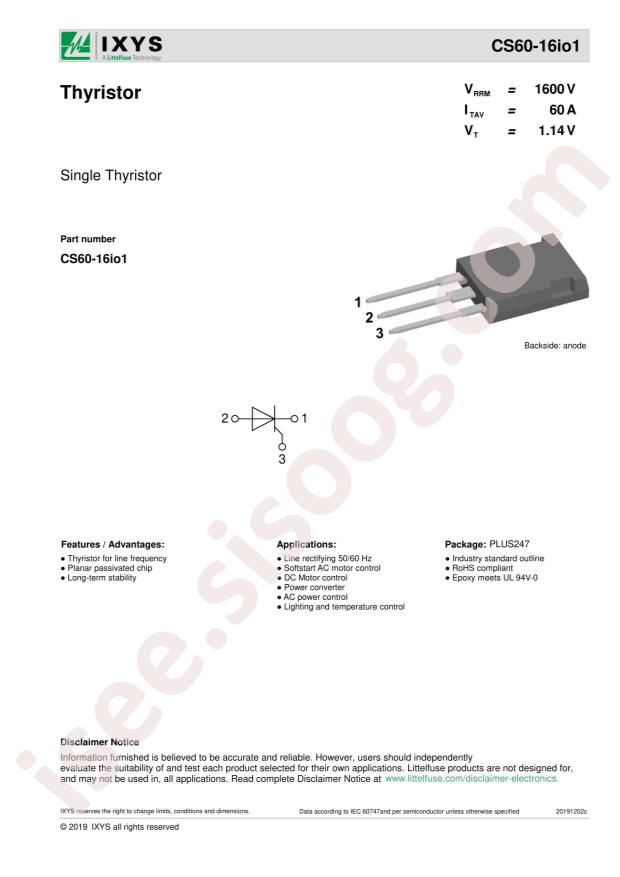

دیتاشیت CS60-16IO1
مشخصات دیتاشیت
| نام دیتاشیت |
CS60-16IO1
|
| حجم فایل |
255.703
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/TRIACs
-
SCR Type:
One-way thyristor
-
Datasheet:
Littelfuse/IXYS CS60-16IO1
-
Holding Current (Ih):
200mA
-
Gate Trigger Current(Igt):
100mA
-
Gate Trigger Voltage (Vgt):
1.5V
-
RMS On-State Current(It (rms)):
75A
-
Peak Forward On?State Voltage (Vtm):
-
-
Average Gate Power Dissipation (PG(AV)):
500mW
-
Peak Repetitive Off?State Voltage (Vdrm):
1.6kV
-
Peak non-repetitive surge current (Itsm@f):
1.4kA@50Hz
-
Package:
TO-247-3
-
Manufacturer:
IXYS
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Voltage - Off State:
1.6kV
-
Voltage - Gate Trigger (Vgt) (Max):
1.5V
-
Current - Gate Trigger (Igt) (Max):
100mA
-
Voltage - On State (Vtm) (Max):
1.4V
-
Current - On State (It (AV)) (Max):
48A
-
Current - On State (It (RMS)) (Max):
75A
-
Current - Hold (Ih) (Max):
200mA
-
Current - Off State (Max):
10mA
-
Current - Non Rep. Surge 50, 60Hz (Itsm):
1500A, 1600A
-
Operating Temperature:
-40°C ~ 140°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
PLUS247™-3
-
Base Part Number:
CS60
-
detail:
SCR 1.6kV 75A Standard Recovery Through Hole PLUS247™-3
