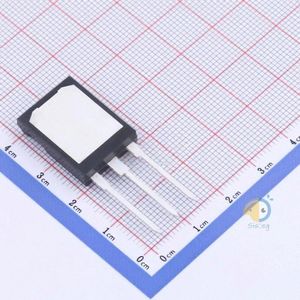

CS60-16IO1
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | IXYS |
| Package | TO-247-3 |
| Datasheet | CS60-16IO1 |
| Description | SCR 1.6kV 75A Standard Recovery Through Hole PLUS247™-3 |
فروشنده های CS60-16IO1
فروشگاهی یافت نشد
مشخصات CS60-16IO1
- RoHS true
- Category Triode/MOS Tube/Transistor/TRIACs
- SCR Type One-way thyristor
- Datasheet Littelfuse/IXYS CS60-16IO1
- Holding Current (Ih) 200mA
- Gate Trigger Current(Igt) 100mA
- Gate Trigger Voltage (Vgt) 1.5V
- RMS On-State Current(It (rms)) 75A
- Peak Forward On?State Voltage (Vtm) -
- Average Gate Power Dissipation (PG(AV)) 500mW
- Peak Repetitive Off?State Voltage (Vdrm) 1.6kV
- Peak non-repetitive surge current (Itsm@f) 1.4kA@50Hz
- Package TO-247-3
- Manufacturer IXYS
- Series -
- Packaging Tube
- Part Status Active
- Voltage - Off State 1.6kV
- Voltage - Gate Trigger (Vgt) (Max) 1.5V
- Current - Gate Trigger (Igt) (Max) 100mA
- Voltage - On State (Vtm) (Max) 1.4V
- Current - On State (It (AV)) (Max) 48A
- Current - On State (It (RMS)) (Max) 75A
- Current - Hold (Ih) (Max) 200mA
- Current - Off State (Max) 10mA
- Current - Non Rep. Surge 50, 60Hz (Itsm) 1500A, 1600A
- Operating Temperature -40°C ~ 140°C
- Mounting Type Through Hole
- Package / Case TO-247-3
- Supplier Device Package PLUS247™-3
- Base Part Number CS60
- detail SCR 1.6kV 75A Standard Recovery Through Hole PLUS247™-3
