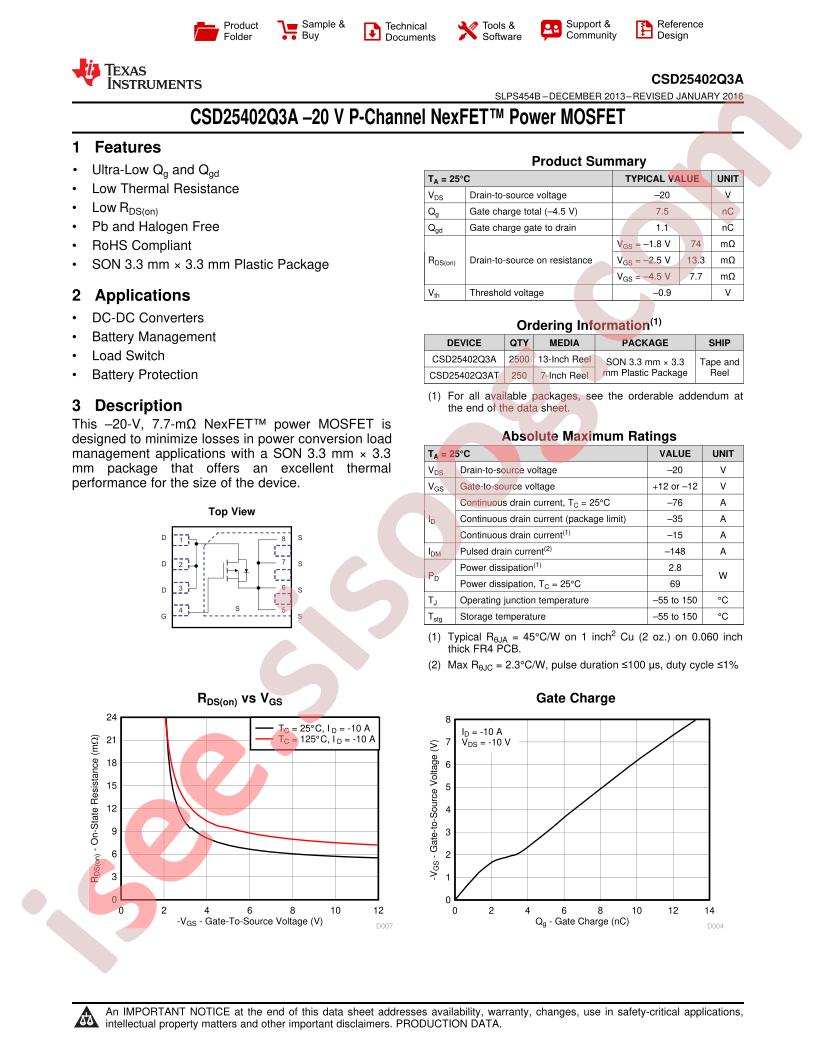

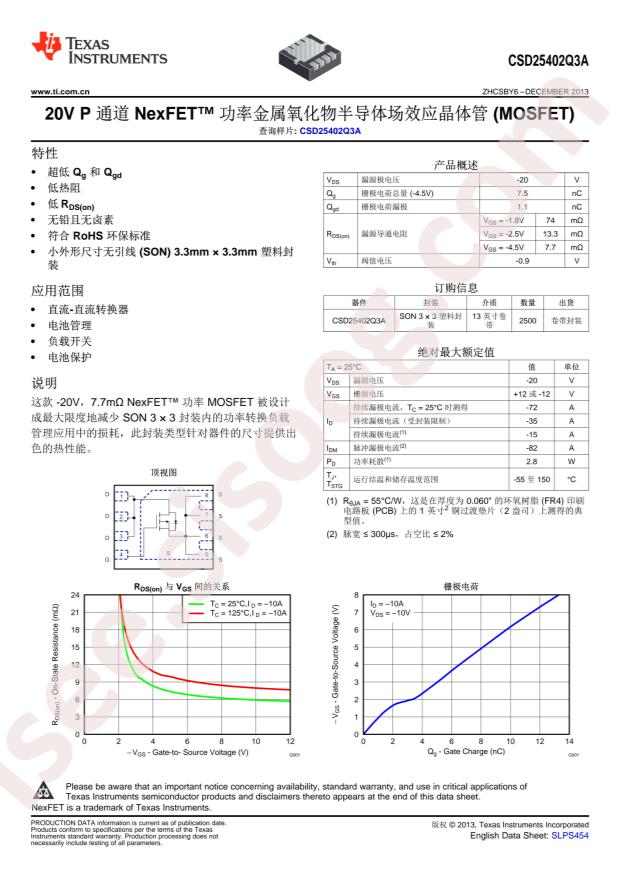

دیتاشیت CSD25402Q3A
مشخصات دیتاشیت
| نام دیتاشیت |
CSD25402Q3A
|
| حجم فایل |
1086.989
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
15
|
مشخصات
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Texas Instruments CSD25402Q3A
-
Power Dissipation (Pd):
2.8W
-
Drain Source Voltage (Vdss):
20V
-
Continuous Drain Current (Id):
76A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.15V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
8.9mΩ@4.5V,10A
-
Package:
VSONP-8(3.1x3.1)
-
Manufacturer:
Texas Instruments
-
Power Dissipation (Max):
2.8W (Ta), 69W (Tc)
-
Input Capacitance (Ciss) (Max) @ Vds:
1790pF @ 10V
-
Vgs (Max):
±12V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Supplier Device Package:
8-VSON (3.3x3.3)
-
Packaging:
Cut Tape (CT)
-
Mounting Type:
Surface Mount
-
Drive Voltage (Max Rds On, Min Rds On):
1.8V, 4.5V
-
Base Part Number:
CSD2540
-
Vgs(th) (Max) @ Id:
1.15V @ 250µA
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
FET Feature:
-
-
Package / Case:
8-PowerVDFN
-
Part Status:
Active
-
Series:
NexFET™
-
Gate Charge (Qg) (Max) @ Vgs:
9.7nC @ 4.5V
-
Rds On (Max) @ Id, Vgs:
8.9mOhm @ 10A, 4.5V
-
Current - Continuous Drain (Id) @ 25°C:
76A (Tc)
-
Drain to Source Voltage (Vdss):
20V
-
detail:
P-Channel 20V 76A (Tc) 2.8W (Ta), 69W (Tc) Surface Mount 8-VSON (3.3x3.3)
