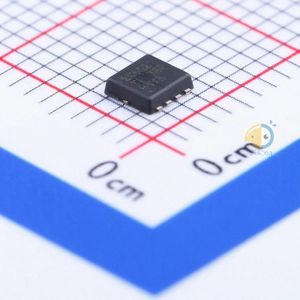

CSD25402Q3A
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |

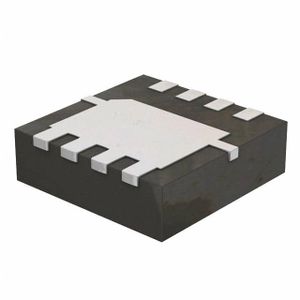

| Package | 8-PowerVDFN |
| Datasheet | CSD25402Q3A |
| Description | P-Channel 20V 76A (Tc) 2.8W (Ta), 69W (Tc) Surface Mount 8-VSON (3.3x3.3) |
فروشنده های CSD25402Q3A
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات CSD25402Q3A
- RoHS true
- Type P Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet Texas Instruments CSD25402Q3A
- Power Dissipation (Pd) 2.8W
- Drain Source Voltage (Vdss) 20V
- Continuous Drain Current (Id) 76A
- Gate Threshold Voltage (Vgs(th)@Id) 1.15V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 8.9mΩ@4.5V,10A
- Package VSONP-8(3.1x3.1)
- Manufacturer Texas Instruments
- Power Dissipation (Max) 2.8W (Ta), 69W (Tc)
- Input Capacitance (Ciss) (Max) @ Vds 1790pF @ 10V
- Vgs (Max) ±12V
- Operating Temperature -55°C ~ 150°C (TJ)
- Supplier Device Package 8-VSON (3.3x3.3)
- Packaging Cut Tape (CT)
- Mounting Type Surface Mount
- Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
- Base Part Number CSD2540
- Vgs(th) (Max) @ Id 1.15V @ 250µA
- FET Type P-Channel
- Technology MOSFET (Metal Oxide)
- FET Feature -
- Package / Case 8-PowerVDFN
- Part Status Active
- Series NexFET™
- Gate Charge (Qg) (Max) @ Vgs 9.7nC @ 4.5V
- Rds On (Max) @ Id, Vgs 8.9mOhm @ 10A, 4.5V
- Current - Continuous Drain (Id) @ 25°C 76A (Tc)
- Drain to Source Voltage (Vdss) 20V
- detail P-Channel 20V 76A (Tc) 2.8W (Ta), 69W (Tc) Surface Mount 8-VSON (3.3x3.3)
