دیتاشیت LP38691SD-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP38691/93-ADJ |
|---|---|
| حجم فایل | 1909.877 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |

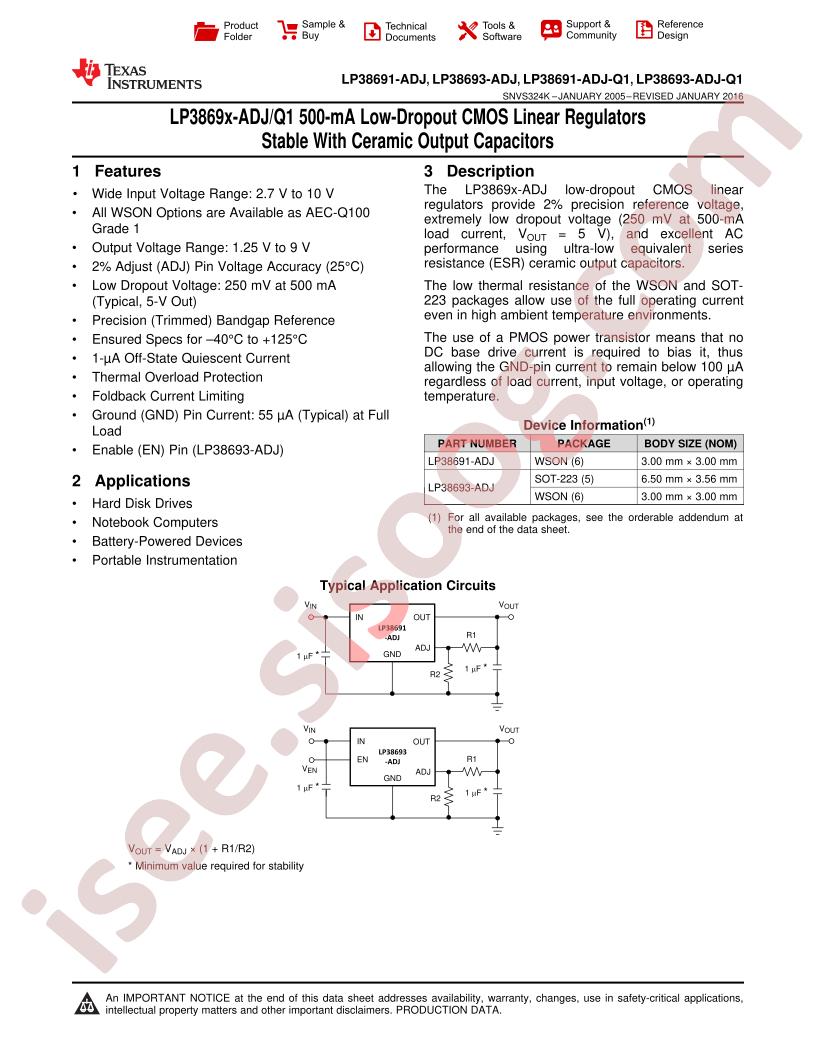

دانلود دیتاشیت LP38691/93-ADJ |
LP38691/93-ADJ Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP38691SD-ADJ/NOPB
- Output Type: Adjustable
- Output Current: 500mA
- Output Voltage: 1.25V~9V
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 10V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 55uA
- Power Supply Rejection Ratio (PSRR): 55dB@(120Hz)

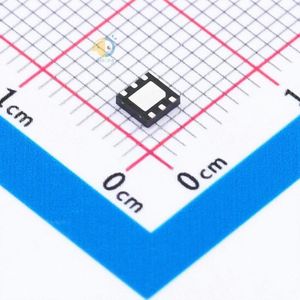

- Package: WSON-6
- Manufacturer: Texas Instruments
- Voltage Dropout (Max): -
- Current - Supply (Max): 100µA
- Current - Output: 500mA
- Current - Quiescent (Iq): 55µA
- Voltage - Input (Max): 10V
- Base Part Number: LP38691
- Package / Case: 6-WDFN Exposed Pad
- Voltage - Output (Max): 9V
- Output Configuration: Positive
- Series: Automotive, AEC-Q100
- Supplier Device Package: 6-WSON (3x3)
- PSRR: 55dB (120Hz)
- Part Status: Not For New Designs
- Mounting Type: Surface Mount
- Control Features: -
- Protection Features: Over Temperature
- Voltage - Output (Min/Fixed): 1.25V
- Number of Regulators: 1
- Packaging: Cut Tape (CT)
- detail: Linear Voltage Regulator IC 1 Output 500mA 6-WSON (3x3)
