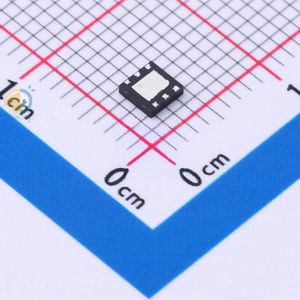

LP38691SD-ADJ/NOPB
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | 6-WDFN Exposed Pad |
| Datasheet | LP38691/93-ADJ |
| Description | Linear Voltage Regulator IC 1 Output 500mA 6-WSON (3x3) |
فروشنده های LP38691SD-ADJ/NOPB
فروشگاهی یافت نشد
مشخصات LP38691SD-ADJ/NOPB
- RoHS true
- Category Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet Texas Instruments LP38691SD-ADJ/NOPB
- Output Type Adjustable
- Output Current 500mA
- Output Voltage 1.25V~9V
- Output Polarity positive
- Number of Outputs 1
- Maximum Input Voltage 10V
- Operating Temperature -40°C~+125°C
- Quiescent Current (Ground Current) 55uA
- Power Supply Rejection Ratio (PSRR) 55dB@(120Hz)
- Package WSON-6
- Manufacturer Texas Instruments
- Voltage Dropout (Max) -
- Current - Supply (Max) 100µA
- Current - Output 500mA
- Current - Quiescent (Iq) 55µA
- Voltage - Input (Max) 10V
- Base Part Number LP38691
- Package / Case 6-WDFN Exposed Pad
- Voltage - Output (Max) 9V
- Output Configuration Positive
- Series Automotive, AEC-Q100
- Supplier Device Package 6-WSON (3x3)
- PSRR 55dB (120Hz)
- Part Status Not For New Designs
- Mounting Type Surface Mount
- Control Features -
- Protection Features Over Temperature
- Voltage - Output (Min/Fixed) 1.25V
- Number of Regulators 1
- Packaging Cut Tape (CT)
- detail Linear Voltage Regulator IC 1 Output 500mA 6-WSON (3x3)
