دیتاشیت CSD17573Q5B
مشخصات دیتاشیت
| نام دیتاشیت | CSD17573Q5B Datasheet |
|---|---|
| حجم فایل | 538.497 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 13 |
دانلود دیتاشیت CSD17573Q5B Datasheet |

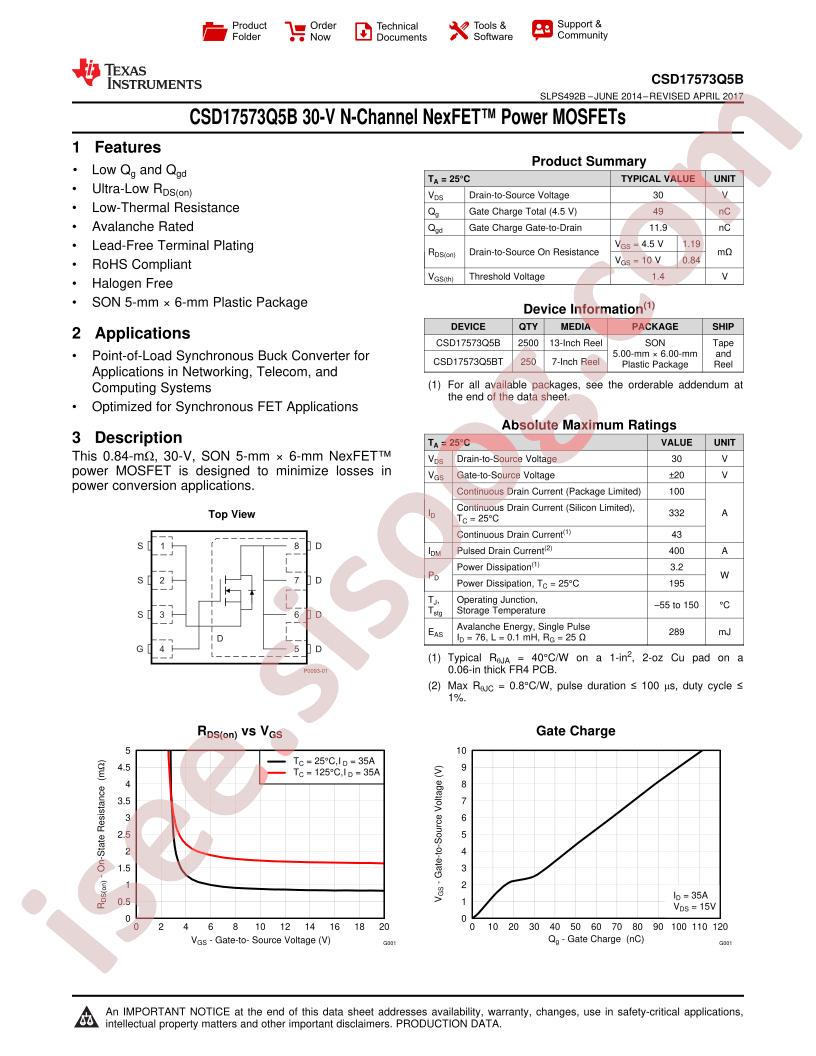

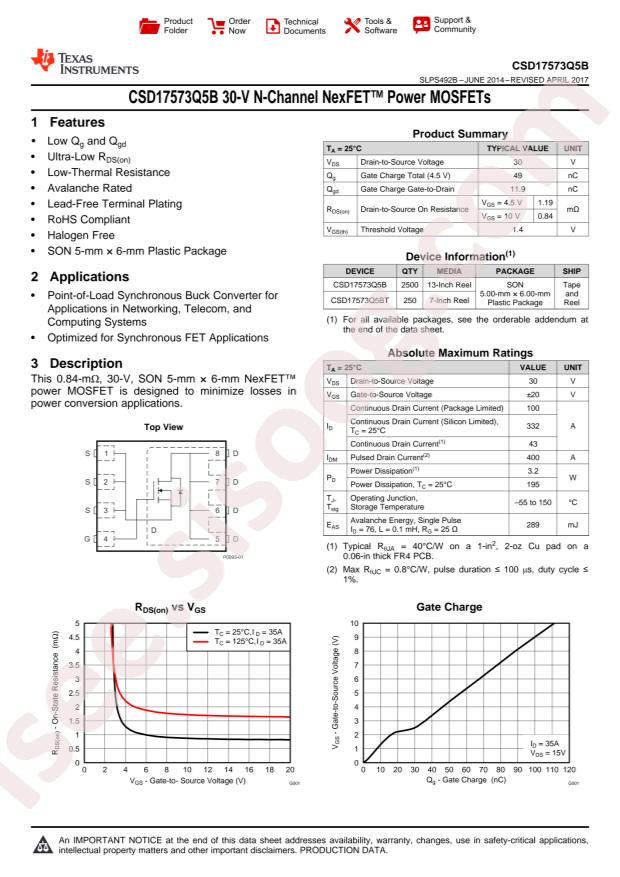

CSD17573Q5B Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: Texas Instruments CSD17573Q5B
- Power Dissipation (Pd): 3.2W
- Drain Source Voltage (Vdss): 30V
- Continuous Drain Current (Id): 100A
- Gate Threshold Voltage (Vgs(th)@Id): 1.8V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 1mΩ@10V,35A
- Package: DFN-8(5x6)
- Manufacturer: Texas Instruments
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Series: NexFET™
- Gate Charge (Qg) (Max) @ Vgs: 64nC @ 4.5V
- FET Feature: -
- Drain to Source Voltage (Vdss): 30V
- Rds On (Max) @ Id, Vgs: 1mOhm @ 35A, 10V
- Supplier Device Package: 8-VSON-CLIP (5x6)
- Vgs (Max): ±20V
- Mounting Type: Surface Mount
- Technology: MOSFET (Metal Oxide)
- Packaging: Cut Tape (CT)
- Power Dissipation (Max): 3.2W (Ta), 195W (Tc)
- Current - Continuous Drain (Id) @ 25°C: 100A (Ta)
- Vgs(th) (Max) @ Id: 1.8V @ 250µA
- Base Part Number: CSD17573
- FET Type: N-Channel
- Package / Case: 8-PowerTDFN
- Operating Temperature: -55°C ~ 150°C (TJ)
- Input Capacitance (Ciss) (Max) @ Vds: 9000pF @ 15V
- Part Status: Active
- detail: N-Channel 30V 100A (Ta) 3.2W (Ta), 195W (Tc) Surface Mount 8-VSON-CLIP (5x6)
