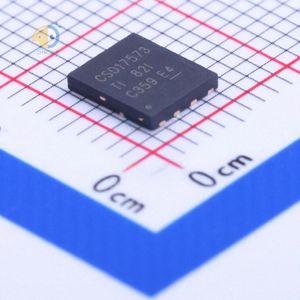

CSD17573Q5B
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | 8-PowerTDFN |
| Datasheet | CSD17573Q5B Datasheet |
| Description | N-Channel 30V 100A (Ta) 3.2W (Ta), 195W (Tc) Surface Mount 8-VSON-CLIP (5x6) |
فروشنده های CSD17573Q5B
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات CSD17573Q5B
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet Texas Instruments CSD17573Q5B
- Power Dissipation (Pd) 3.2W
- Drain Source Voltage (Vdss) 30V
- Continuous Drain Current (Id) 100A
- Gate Threshold Voltage (Vgs(th)@Id) 1.8V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 1mΩ@10V,35A
- Package DFN-8(5x6)
- Manufacturer Texas Instruments
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Series NexFET™
- Gate Charge (Qg) (Max) @ Vgs 64nC @ 4.5V
- FET Feature -
- Drain to Source Voltage (Vdss) 30V
- Rds On (Max) @ Id, Vgs 1mOhm @ 35A, 10V
- Supplier Device Package 8-VSON-CLIP (5x6)
- Vgs (Max) ±20V
- Mounting Type Surface Mount
- Technology MOSFET (Metal Oxide)
- Packaging Cut Tape (CT)
- Power Dissipation (Max) 3.2W (Ta), 195W (Tc)
- Current - Continuous Drain (Id) @ 25°C 100A (Ta)
- Vgs(th) (Max) @ Id 1.8V @ 250µA
- Base Part Number CSD17573
- FET Type N-Channel
- Package / Case 8-PowerTDFN
- Operating Temperature -55°C ~ 150°C (TJ)
- Input Capacitance (Ciss) (Max) @ Vds 9000pF @ 15V
- Part Status Active
- detail N-Channel 30V 100A (Ta) 3.2W (Ta), 195W (Tc) Surface Mount 8-VSON-CLIP (5x6)
