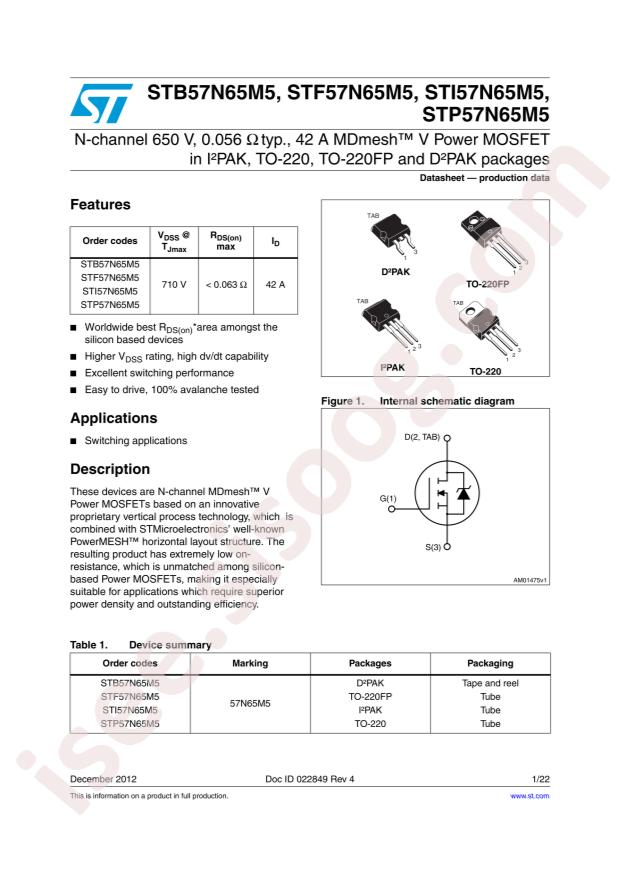

STP57N65M5 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STP57N65M5
|
|
حجم فایل
|
72.839
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
22
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STP57N65M5
-
Power Dissipation (Pd):
250W
-
Total Gate Charge (Qg@Vgs):
98nC@10V
-
Drain Source Voltage (Vdss):
650V
-
Input Capacitance (Ciss@Vds):
4200pF@100V
-
Continuous Drain Current (Id):
42A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
63mΩ@21A,10V
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ V
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
650V
-
Current - Continuous Drain (Id) @ 25°C:
42A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
63mOhm @ 21A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
98nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
4200pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
250W (Tc)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220
-
Package / Case:
TO-220-3
-
Base Part Number:
STP57N
-
detail:
N-Channel 650V 42A (Tc) 250W (Tc) Through Hole TO-220
