دیتاشیت LM2698MM-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM2698 |
|---|---|
| حجم فایل | 1515.721 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |
دانلود دیتاشیت LM2698 |

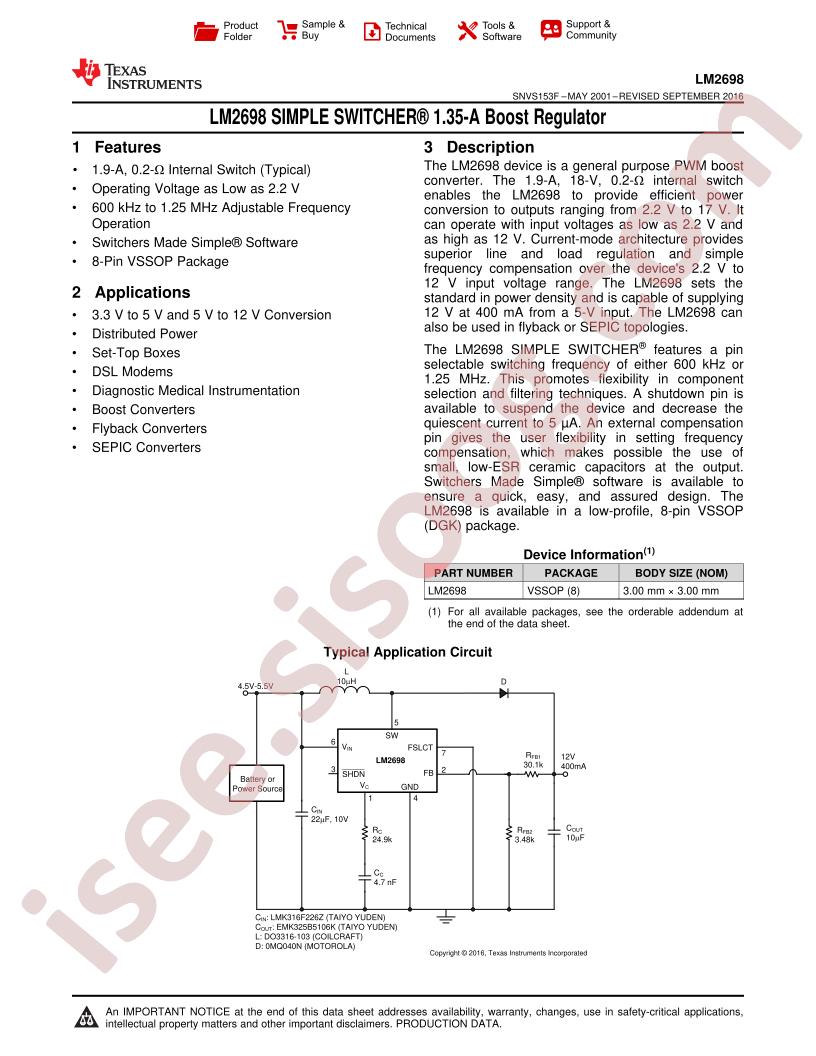

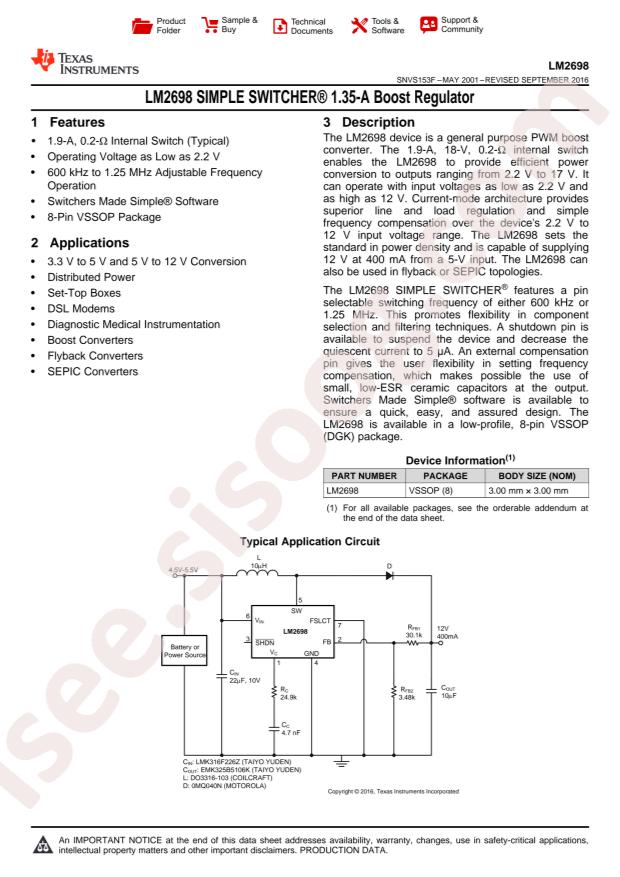

LM2698 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType;Buck-boost type
- Topology: Boost;SEPIC
- Datasheet: Texas Instruments LM2698MM-ADJ/NOPB
- Output Type: Adjustable
- Input Voltage: 2.2V~12V
- Output Voltage: 2.2V~17.5V
- Number of Outputs: 1
- Switching Frequency: 600kHz;1.25MHz
- Output Current (Max): 1.35A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: MSOP-8
- Manufacturer: Texas Instruments
- Frequency - Switching: 600kHz, 1.25MHz
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-VSSOP
- Voltage - Output (Min/Fixed): 2.2V
- Current - Output: 1.35A (Switch)
- Output Configuration: Positive or Negative
- Packaging: Cut Tape (CT)
- Part Status: Active
- Voltage - Output (Max): 17.5V
- Series: SIMPLE SWITCHER®
- Mounting Type: Surface Mount
- Voltage - Input (Max): 12V
- Base Part Number: LM2698
- Voltage - Input (Min): 2.2V
- Synchronous Rectifier: No
- detail: Boost, SEPIC Switching Regulator IC Positive or Negative Adjustable 2.2V 1 Output 1.35A (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
