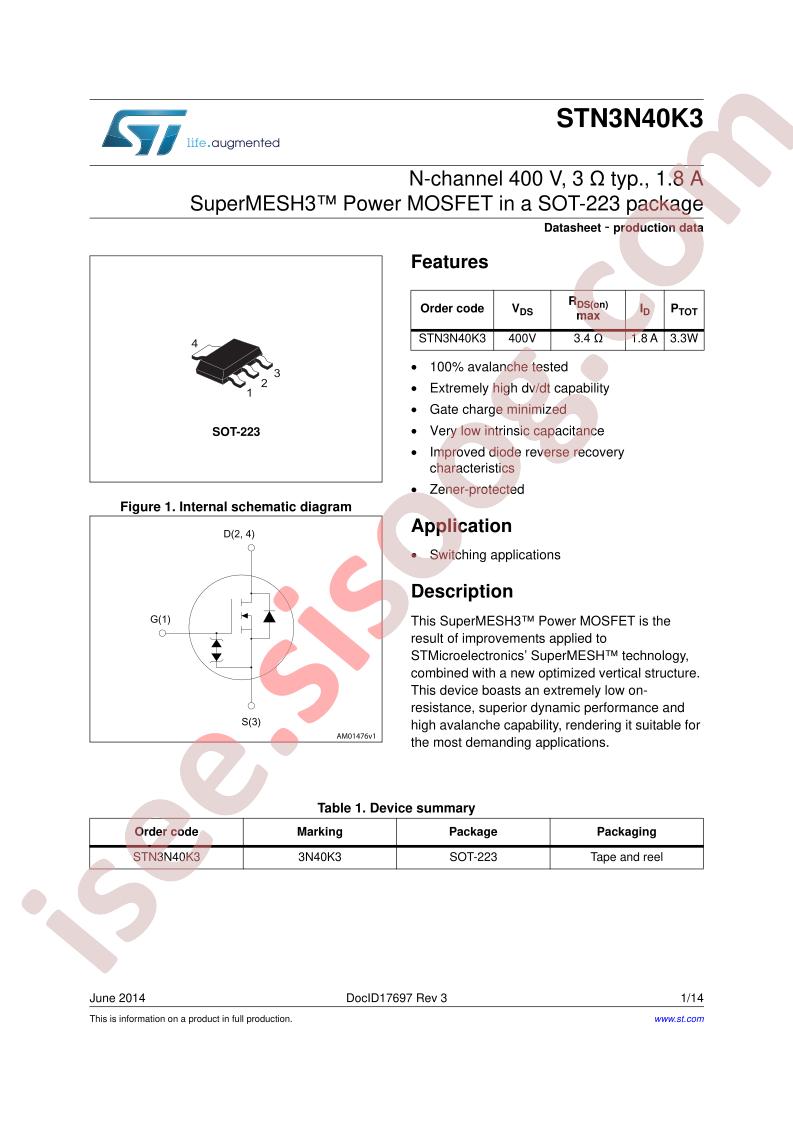

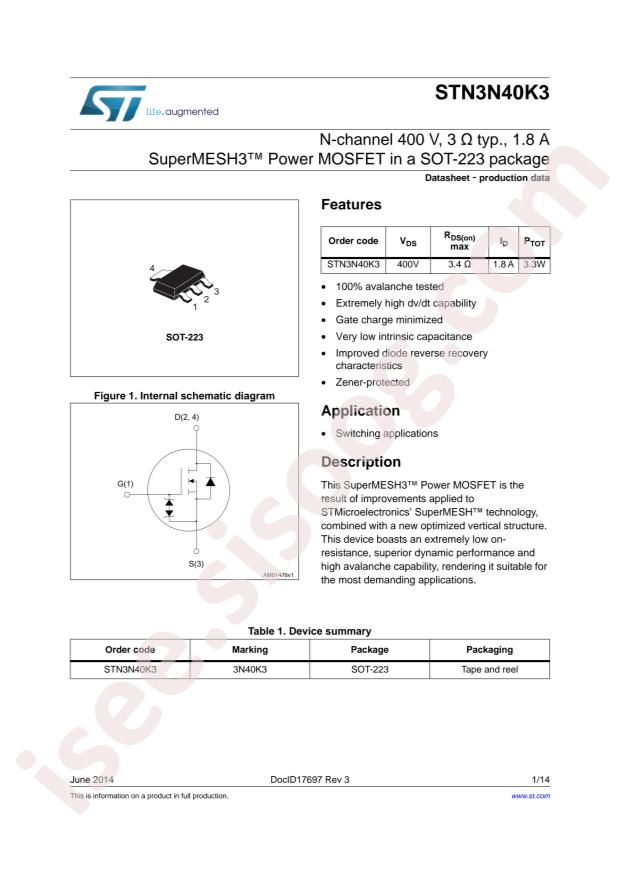

دیتاشیت STN3N40K3
مشخصات دیتاشیت
| نام دیتاشیت |
STN3N40K3
|
| حجم فایل |
941.621
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STN3N40K3
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3.3W
-
Total Gate Charge (Qg@Vgs):
11nC@10V
-
Drain Source Voltage (Vdss):
400V
-
Input Capacitance (Ciss@Vds):
165pF@50V
-
Continuous Drain Current (Id):
1.8A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.5V@50uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.4Ω@10V,600mA
-
Package:
SOT-223
-
Manufacturer:
STMicroelectronics
-
Series:
SuperMESH3™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
400V
-
Current - Continuous Drain (Id) @ 25°C:
1.8A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
3.4Ohm @ 600mA, 10V
-
Vgs(th) (Max) @ Id:
4.5V @ 50µA
-
Gate Charge (Qg) (Max) @ Vgs:
11nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
165pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
3.3W (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-223
-
Package / Case:
TO-261-4, TO-261AA
-
Base Part Number:
STN3N
-
detail:
N-Channel 400V 1.8A (Tc) 3.3W (Ta) Surface Mount SOT-223
