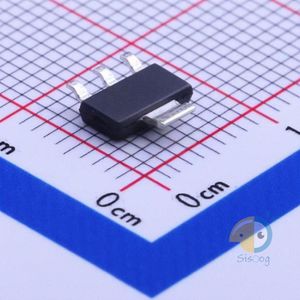

STN3N40K3
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-261-4, TO-261AA |
| Datasheet | STN3N40K3 |
| Description | N-Channel 400V 1.8A (Tc) 3.3W (Ta) Surface Mount SOT-223 |
فروشنده های STN3N40K3
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STN3N40K3
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STN3N40K3
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 3.3W
- Total Gate Charge (Qg@Vgs) 11nC@10V
- Drain Source Voltage (Vdss) 400V
- Input Capacitance (Ciss@Vds) 165pF@50V
- Continuous Drain Current (Id) 1.8A
- Gate Threshold Voltage (Vgs(th)@Id) 4.5V@50uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 3.4Ω@10V,600mA
- Package SOT-223
- Manufacturer STMicroelectronics
- Series SuperMESH3™
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 400V
- Current - Continuous Drain (Id) @ 25°C 1.8A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 3.4Ohm @ 600mA, 10V
- Vgs(th) (Max) @ Id 4.5V @ 50µA
- Gate Charge (Qg) (Max) @ Vgs 11nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 165pF @ 50V
- FET Feature -
- Power Dissipation (Max) 3.3W (Ta)
- Mounting Type Surface Mount
- Supplier Device Package SOT-223
- Package / Case TO-261-4, TO-261AA
- Base Part Number STN3N
- detail N-Channel 400V 1.8A (Tc) 3.3W (Ta) Surface Mount SOT-223
