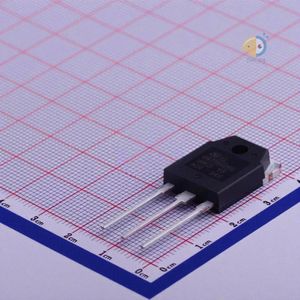

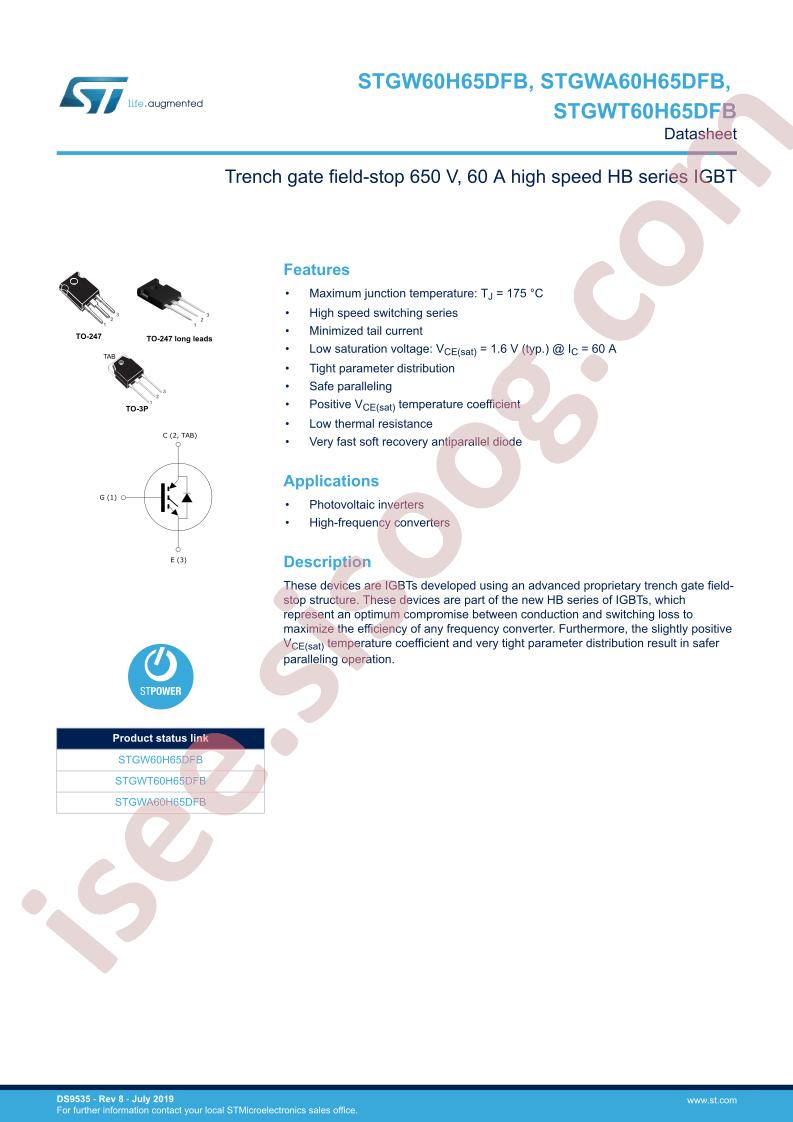

STGW(T)60H65DFB دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGW(T)60H65DFB
|
|
حجم فایل
|
701.815
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
21
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
650V
-
Current - Collector (Ic) (Max):
80A
-
Current - Collector Pulsed (Icm):
240A
-
Vce(on) (Max) @ Vge, Ic:
2V @ 15V, 60A
-
Power - Max:
375W
-
Switching Energy:
1.09mJ (on), 626µJ (off)
-
Input Type:
Standard
-
Gate Charge:
306nC
-
Td (on/off) @ 25°C:
51ns/160ns
-
Test Condition:
400V, 60A, 5Ohm, 15V
-
Reverse Recovery Time (trr):
60ns
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247
-
Base Part Number:
STGW60
-
detail:
IGBT Trench Field Stop 650V 80A 375W Through Hole TO-247
