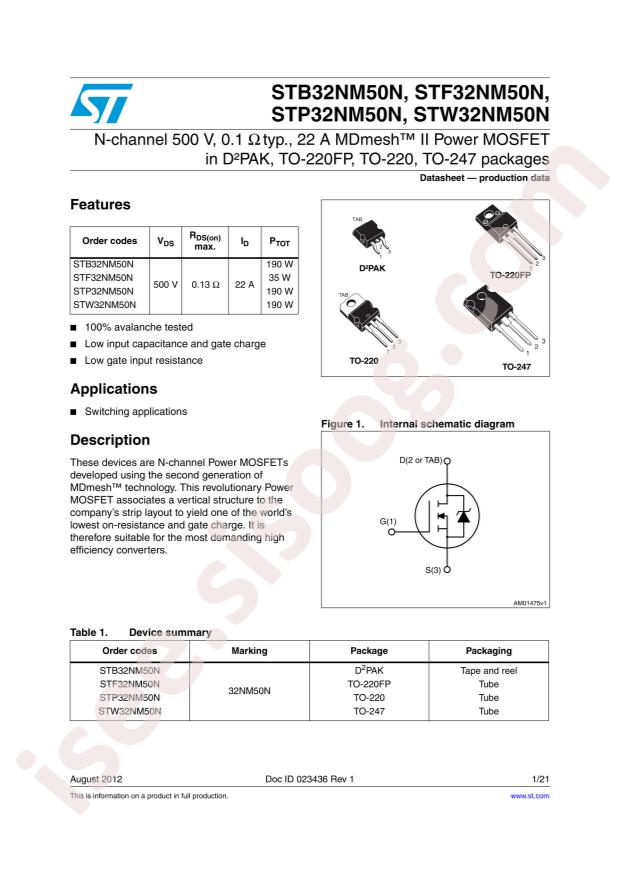

STB32NM50N دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STB32NM50N
|
|
حجم فایل
|
69.944
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
21
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STB32NM50N
-
Power Dissipation (Pd):
190W
-
Total Gate Charge (Qg@Vgs):
62.5nC@10V
-
Drain Source Voltage (Vdss):
500V
-
Input Capacitance (Ciss@Vds):
1973pF@50V
-
Continuous Drain Current (Id):
22A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
130mΩ@11A,10V
-
Package:
D2PK
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ II
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
500V
-
Current - Continuous Drain (Id) @ 25°C:
22A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
130mOhm @ 11A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
62.5nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
1973pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
190W (Tc)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
TO-263 (D²Pak)
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
STB32N
-
detail:
N-Channel 500V 22A (Tc) 190W (Tc) Surface Mount TO-263 (D²Pak)
