STW40N60M2 دیتاشیت

STW40N60M2

مشخصات دیتاشیت

نام دیتاشیت STW40N60M2
حجم فایل 64.126 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت STW40N60M2

دانلود دیتاشیت

سایر مستندات

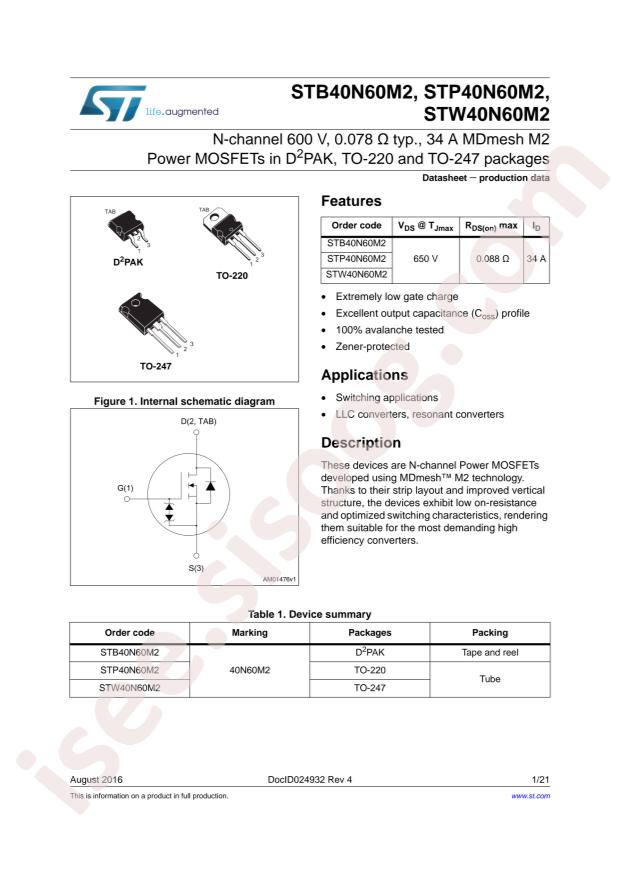

STx40N60M2 21 pages

STW40N60M2 21 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STW40N60M2
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 250W
  • Total Gate Charge (Qg@Vgs): 57nC@10V
  • Drain Source Voltage (Vdss): 600V
  • Input Capacitance (Ciss@Vds): 2500pF@100V
  • Continuous Drain Current (Id): 34A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 88mΩ@10V,17A
  • Package: TO-247
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ II Plus
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 34A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 88mOhm @ 17A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 57nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 2500pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 250W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247
  • Package / Case: TO-247-3
  • Base Part Number: STW40N
  • detail: N-Channel 600V 34A (Tc) 250W (Tc) Through Hole TO-247
