دیتاشیت CSD15380F3

CSD15380F3 Datasheet

مشخصات دیتاشیت

نام دیتاشیت CSD15380F3 Datasheet
حجم فایل 1149.605 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت CSD15380F3 Datasheet

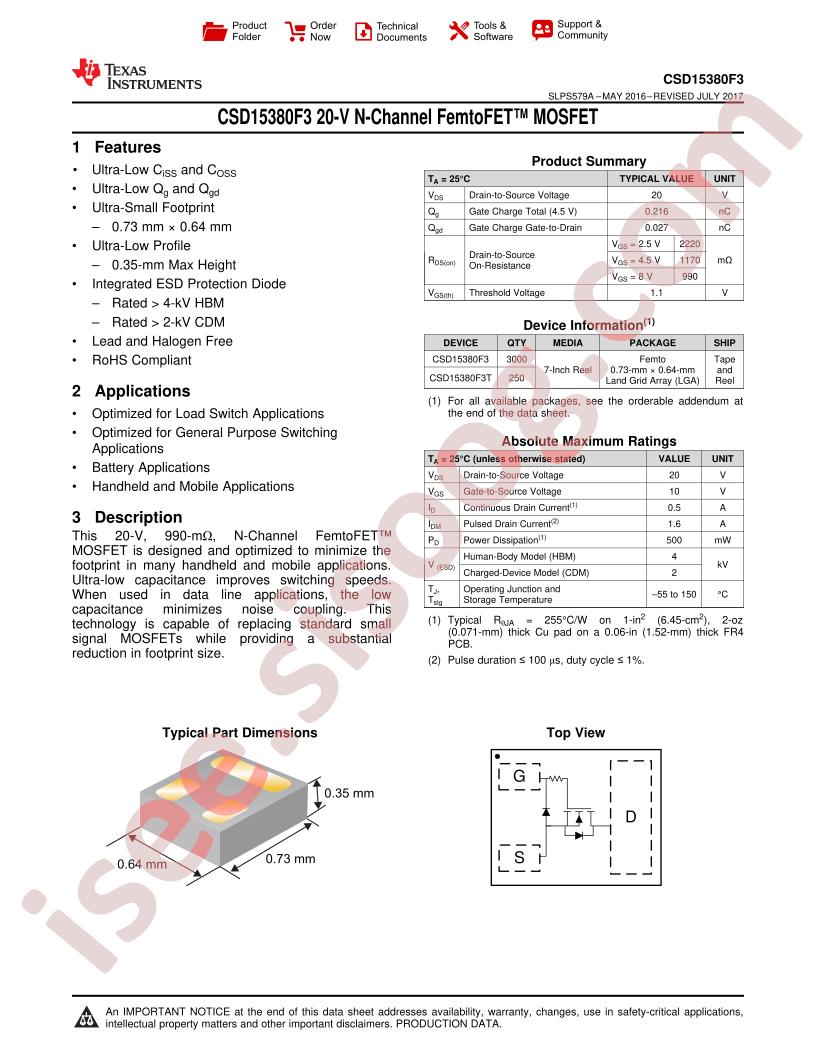

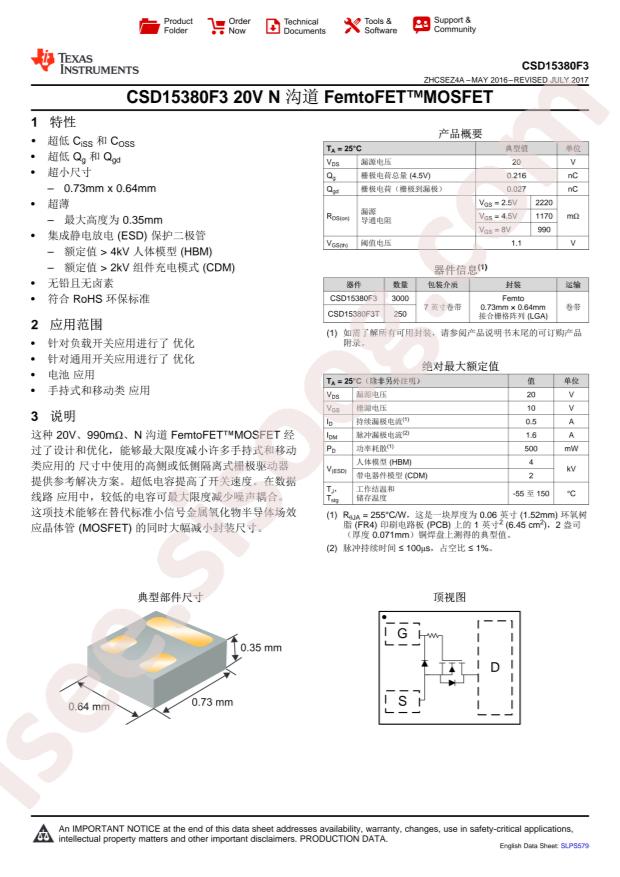

CSD15380F3 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD15380F3
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 500mW
  • Total Gate Charge (Qg@Vgs): 0.281nC@10V
  • Input Capacitance (Ciss@Vds): 10.5pF@10V
  • Continuous Drain Current (Id): 500mA
  • Gate Threshold Voltage (Vgs(th)@Id): 1.35V@2.5uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1190mΩ@100mA,8V
  • Package: LGA
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Power Dissipation (Max): 500mW (Ta)
  • Package / Case: 3-SMD, No Lead
  • Drain to Source Voltage (Vdss): 20V
  • Base Part Number: CSD1538
  • Technology: MOSFET (Metal Oxide)
  • Series: FemtoFET™
  • Mounting Type: Surface Mount
  • Gate Charge (Qg) (Max) @ Vgs: 0.281nC @ 10V
  • Rds On (Max) @ Id, Vgs: 1190mOhm @ 100mA, 8V
  • Input Capacitance (Ciss) (Max) @ Vds: 10.5pF @ 10V
  • Drive Voltage (Max Rds On, Min Rds On): 2.8V, 8V
  • Current - Continuous Drain (Id) @ 25°C: 500mA (Ta)
  • Vgs (Max): 10V
  • Packaging: Cut Tape (CT)
  • Supplier Device Package: 3-PICOSTAR
  • FET Type: N-Channel
  • Vgs(th) (Max) @ Id: 1.35V @ 2.5µA
  • FET Feature: -
  • detail: N-Channel 20V 500mA (Ta) 500mW (Ta) Surface Mount 3-PICOSTAR
