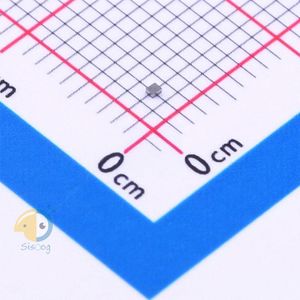

CSD15380F3
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | 3-SMD, No Lead |
| Datasheet | CSD15380F3 Datasheet |
| Description | N-Channel 20V 500mA (Ta) 500mW (Ta) Surface Mount 3-PICOSTAR |
فروشنده های CSD15380F3
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات CSD15380F3
- RoHS true
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet Texas Instruments CSD15380F3
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 500mW
- Total Gate Charge (Qg@Vgs) 0.281nC@10V
- Input Capacitance (Ciss@Vds) 10.5pF@10V
- Continuous Drain Current (Id) 500mA
- Gate Threshold Voltage (Vgs(th)@Id) 1.35V@2.5uA
- Reverse Transfer Capacitance (Crss@Vds) -
- Drain Source On Resistance (RDS(on)@Vgs,Id) 1190mΩ@100mA,8V
- Package LGA
- Manufacturer Texas Instruments
- Part Status Active
- Power Dissipation (Max) 500mW (Ta)
- Package / Case 3-SMD, No Lead
- Drain to Source Voltage (Vdss) 20V
- Base Part Number CSD1538
- Technology MOSFET (Metal Oxide)
- Series FemtoFET™
- Mounting Type Surface Mount
- Gate Charge (Qg) (Max) @ Vgs 0.281nC @ 10V
- Rds On (Max) @ Id, Vgs 1190mOhm @ 100mA, 8V
- Input Capacitance (Ciss) (Max) @ Vds 10.5pF @ 10V
- Drive Voltage (Max Rds On, Min Rds On) 2.8V, 8V
- Current - Continuous Drain (Id) @ 25°C 500mA (Ta)
- Vgs (Max) 10V
- Packaging Cut Tape (CT)
- Supplier Device Package 3-PICOSTAR
- FET Type N-Channel
- Vgs(th) (Max) @ Id 1.35V @ 2.5µA
- FET Feature -
- detail N-Channel 20V 500mA (Ta) 500mW (Ta) Surface Mount 3-PICOSTAR
