دیتاشیت SMAJ188CA-TR

SMAJ Datasheet

مشخصات دیتاشیت

نام دیتاشیت SMAJ Datasheet
حجم فایل 144.348 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت SMAJ Datasheet

SMAJ Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: STMicroelectronics SMAJ188CA-TR
  • Breakdown Voltage: 209V
  • Bidirectional Channels: 1
  • Maximum Clamping Voltage: 388V
  • Reverse Leakage Current (Ir): 0.2uA
  • Reverse Stand-Off Voltage (Vrwm): 188V
  • Peak Pulse Current (Ipp)@10/1000us: 6A@8/20us
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 400W

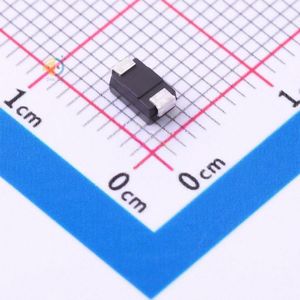

  • Package: SMA(DO-214AC)
  • Manufacturer: STMicroelectronics
  • Series: SMAJ, TRANSIL™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Voltage - Reverse Standoff (Typ): 188V
  • Voltage - Breakdown (Min): 209V
  • Voltage - Clamping (Max) @ Ipp: 388V
  • Current - Peak Pulse (10/1000µs): 6A (8/20µs)
  • Power - Peak Pulse: 400W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AC, SMA
  • Supplier Device Package: SMA (DO-214AC)
  • Base Part Number: SMAJ
  • detail: 388V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount SMA (DO-214AC)
