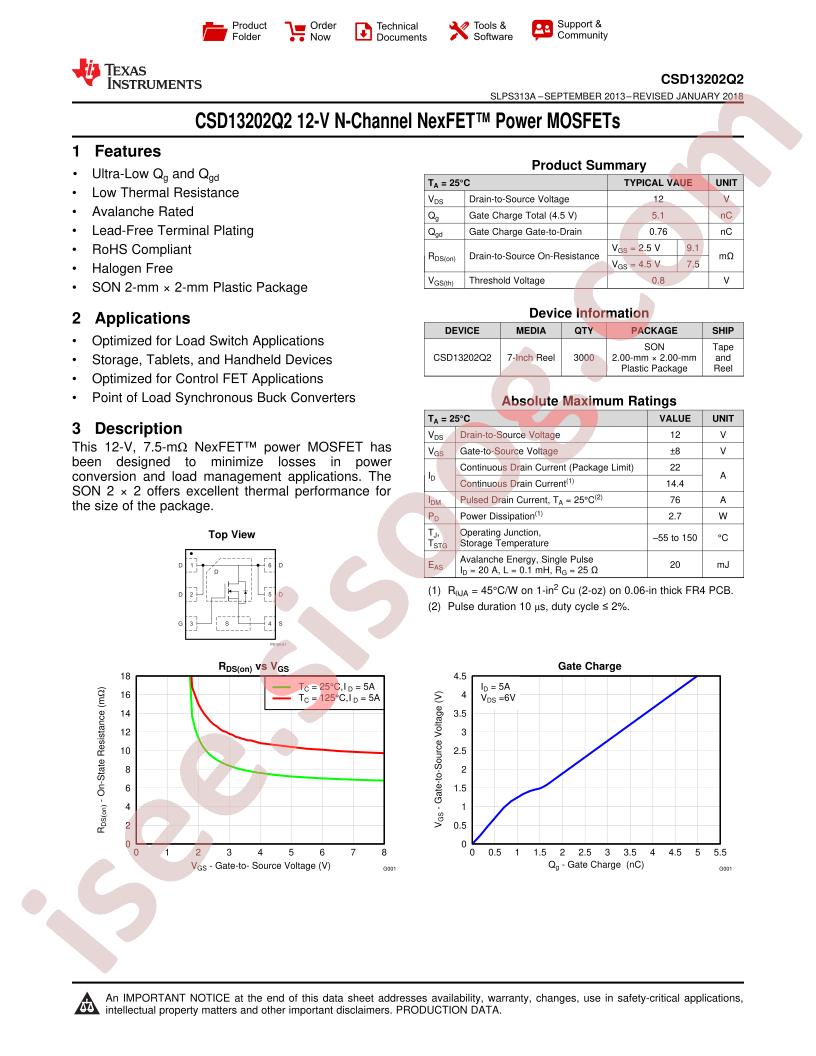

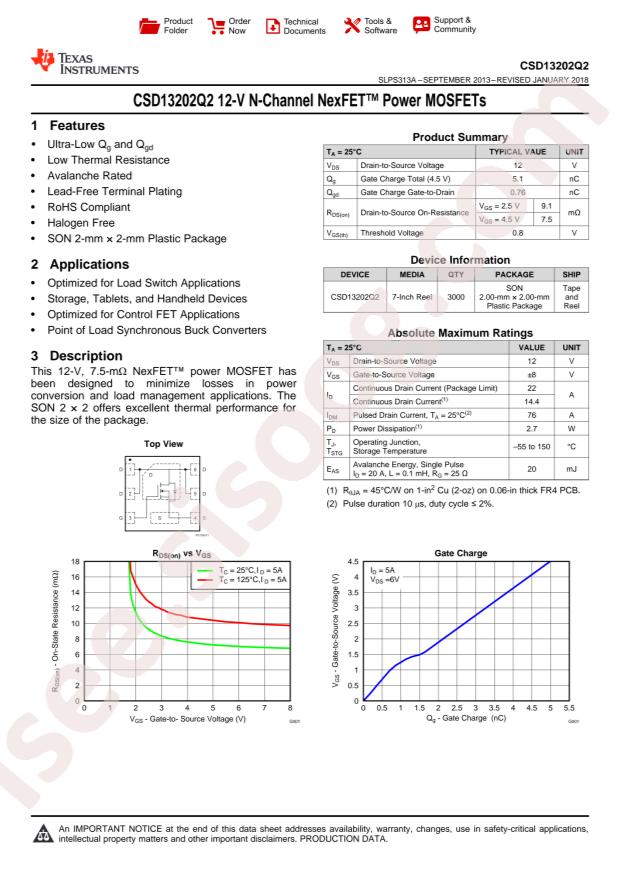

دیتاشیت CSD13202Q2
مشخصات دیتاشیت
| نام دیتاشیت |
CSD13202Q2
|
| حجم فایل |
854.101
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Texas Instruments CSD13202Q2
-
Power Dissipation (Pd):
2.7W
-
Drain Source Voltage (Vdss):
12V
-
Continuous Drain Current (Id):
22A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.1V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
9.3mΩ@4.5V,5A
-
Package:
SON-8(2x2)
-
Manufacturer:
Texas Instruments
-
Power Dissipation (Max):
2.7W (Ta)
-
Drain to Source Voltage (Vdss):
12V
-
Rds On (Max) @ Id, Vgs:
9.3mOhm @ 5A, 4.5V
-
Vgs (Max):
±8V
-
FET Type:
N-Channel
-
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 4.5V
-
Technology:
MOSFET (Metal Oxide)
-
Current - Continuous Drain (Id) @ 25°C:
22A (Ta)
-
FET Feature:
-
-
Input Capacitance (Ciss) (Max) @ Vds:
997pF @ 6V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Packaging:
Cut Tape (CT)
-
Package / Case:
6-VDFN Exposed Pad
-
Part Status:
Active
-
Series:
NexFET™
-
Vgs(th) (Max) @ Id:
1.1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
6.6nC @ 4.5V
-
Supplier Device Package:
6-WSON (2x2)
-
Mounting Type:
Surface Mount
-
Base Part Number:
CSD132
-
detail:
N-Channel 12V 22A (Ta) 2.7W (Ta) Surface Mount 6-WSON (2x2)
