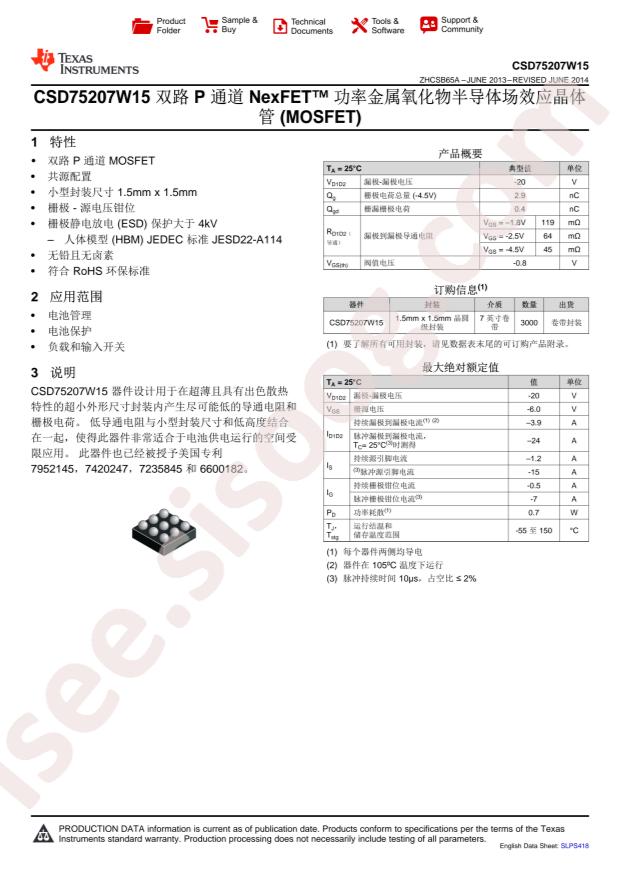

CSD75207W15 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD75207W15
|
|
حجم فایل
|
74.241
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
17
|
مشخصات فنی
-
RoHS:
true
-
Type:
2 P-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Texas Instruments CSD75207W15
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
700mW
-
Total Gate Charge (Qg@Vgs):
3.7nC@4.5V
-
Drain Source Voltage (Vdss):
-
-
Input Capacitance (Ciss@Vds):
595pF@10V
-
Continuous Drain Current (Id):
3.9A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.1V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
162mΩ@1.8V,1A
-
Package:
BGA-9
-
Manufacturer:
Texas Instruments
-
Drain to Source Voltage (Vdss):
-
-
Power - Max:
700mW
-
Rds On (Max) @ Id, Vgs:
162mOhm @ 1A, 1.8V
-
FET Type:
2 P-Channel (Dual) Common Source
-
Part Status:
Active
-
Current - Continuous Drain (Id) @ 25°C:
3.9A
-
FET Feature:
Logic Level Gate
-
Input Capacitance (Ciss) (Max) @ Vds:
595pF @ 10V
-
Packaging:
Cut Tape (CT)
-
Package / Case:
9-UFBGA, DSBGA
-
Series:
NexFET™
-
Vgs(th) (Max) @ Id:
1.1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
3.7nC @ 4.5V
-
Supplier Device Package:
9-DSBGA
-
Mounting Type:
Surface Mount
-
Base Part Number:
CSD7520
-
detail:
Mosfet Array 2 P-Channel (Dual) Common Source 3.9A 700mW Surface Mount 9-DSBGA
