CSD85312Q3E دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD85312Q3E
|
|
حجم فایل
|
86.05
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Type:
2PCSNChannel(Common Drain)
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

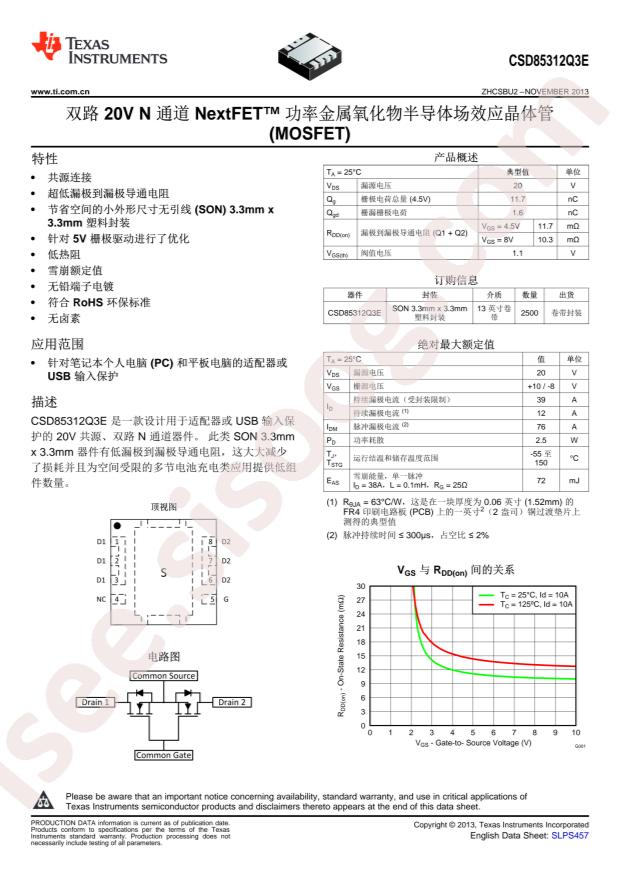

Datasheet:
Texas Instruments CSD85312Q3E
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2.5W
-
Total Gate Charge (Qg@Vgs):
15.2nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
2390pF@10V
-
Continuous Drain Current (Id):
39A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
12.4mΩ@8V,10A
-
Package:
VSON-8(3.3x3.3)
-
Manufacturer:
Texas Instruments
-
Drain to Source Voltage (Vdss):
20V
-
Power - Max:
2.5W
-
Rds On (Max) @ Id, Vgs:
12.4mOhm @ 10A, 8V
-
FET Type:
2 N-Channel (Dual) Common Source
-
Part Status:
Active
-
Current - Continuous Drain (Id) @ 25°C:
39A
-
FET Feature:
Logic Level Gate, 5V Drive
-
Input Capacitance (Ciss) (Max) @ Vds:
2390pF @ 10V
-
Packaging:
Cut Tape (CT)
-
Package / Case:
8-PowerVDFN
-
Series:
NexFET™
-
Vgs(th) (Max) @ Id:
1.4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
15.2nC @ 4.5V
-
Supplier Device Package:
8-VSON (3.3x3.3)
-
Mounting Type:
Surface Mount
-
Base Part Number:
CSD853
-
detail:
Mosfet Array 2 N-Channel (Dual) Common Source 20V 39A 2.5W Surface Mount 8-VSON (3.3x3.3)
