دیتاشیت STB80NF55-06T4

ST(B,P)80NF55-06(-1,FP)

مشخصات دیتاشیت

نام دیتاشیت ST(B,P)80NF55-06(-1,FP)
حجم فایل 447.712 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت ST(B,P)80NF55-06(-1,FP)

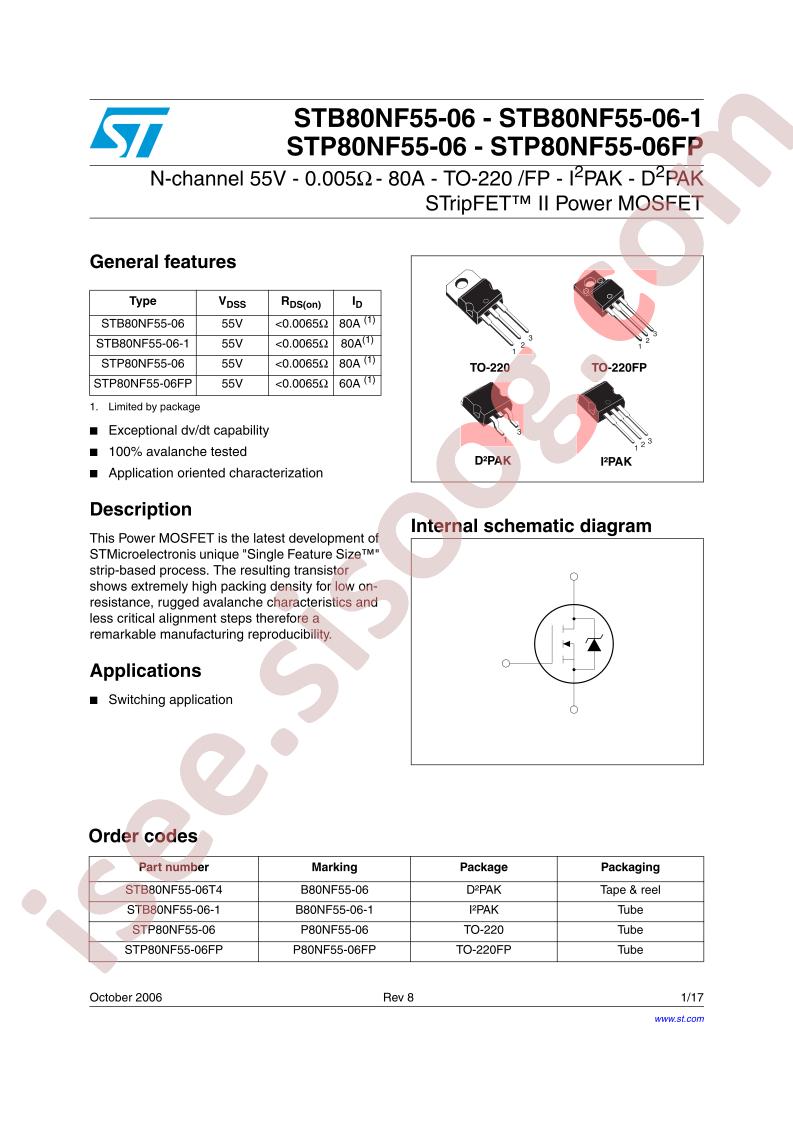

ST(B,P)80NF55-06(-1,FP) Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: STripFET™ II
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 55V
  • Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 6.5mOhm @ 40A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 189nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 4400pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 300W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: D2PAK
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Base Part Number: STB80N
  • detail: N-Channel 55V 80A (Tc) 300W (Tc) Surface Mount D2PAK
